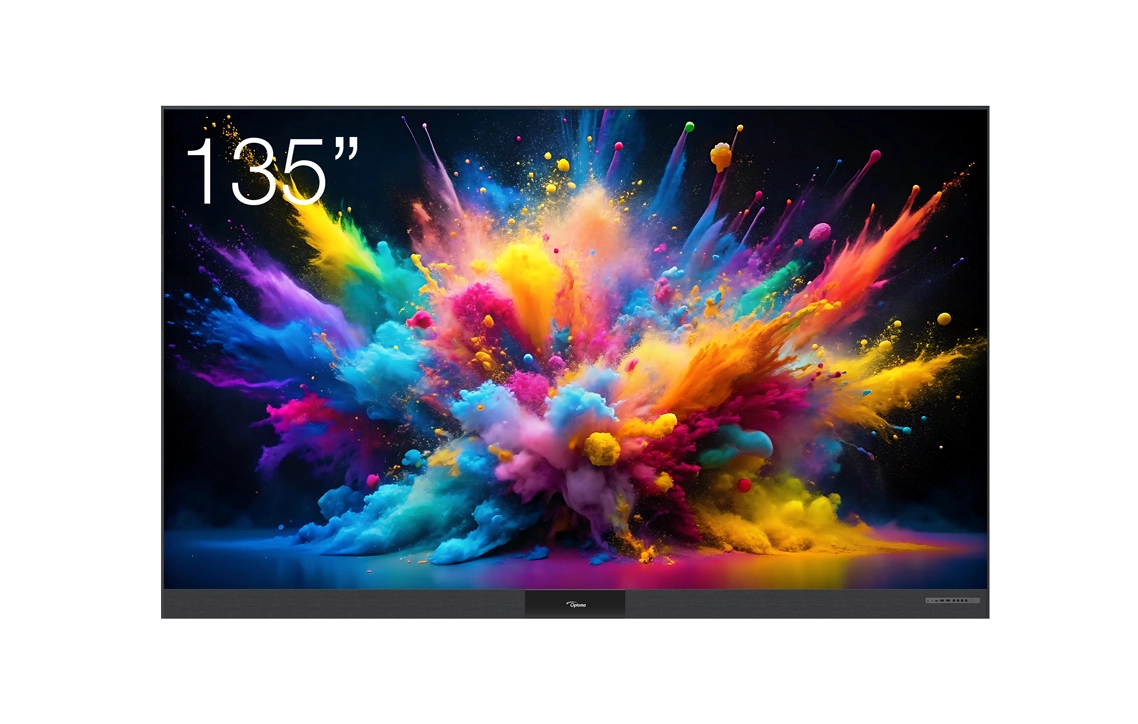

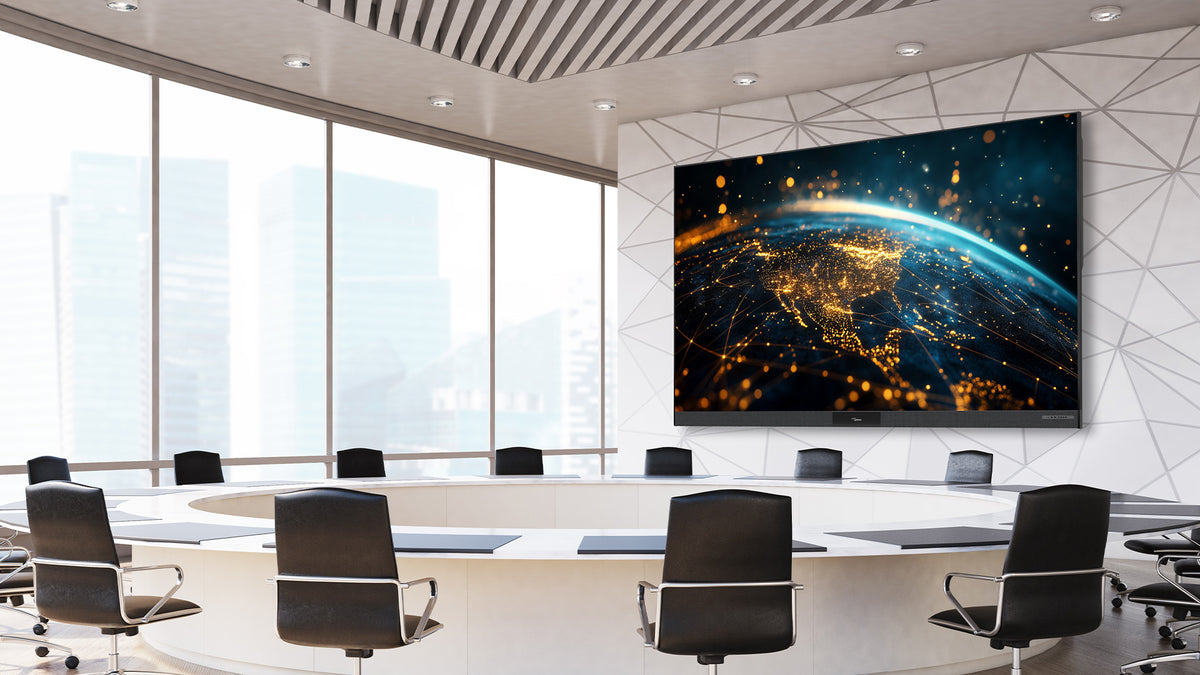

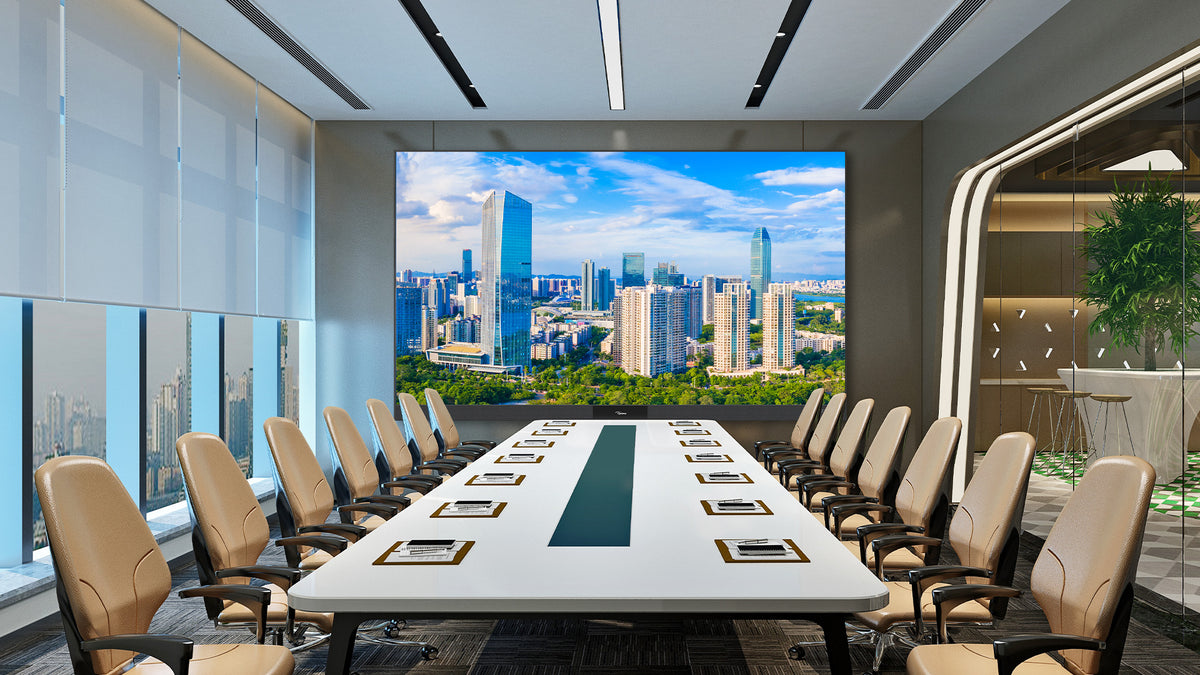

ProScene FHDC135
135″ all-in-one direct-view LED display

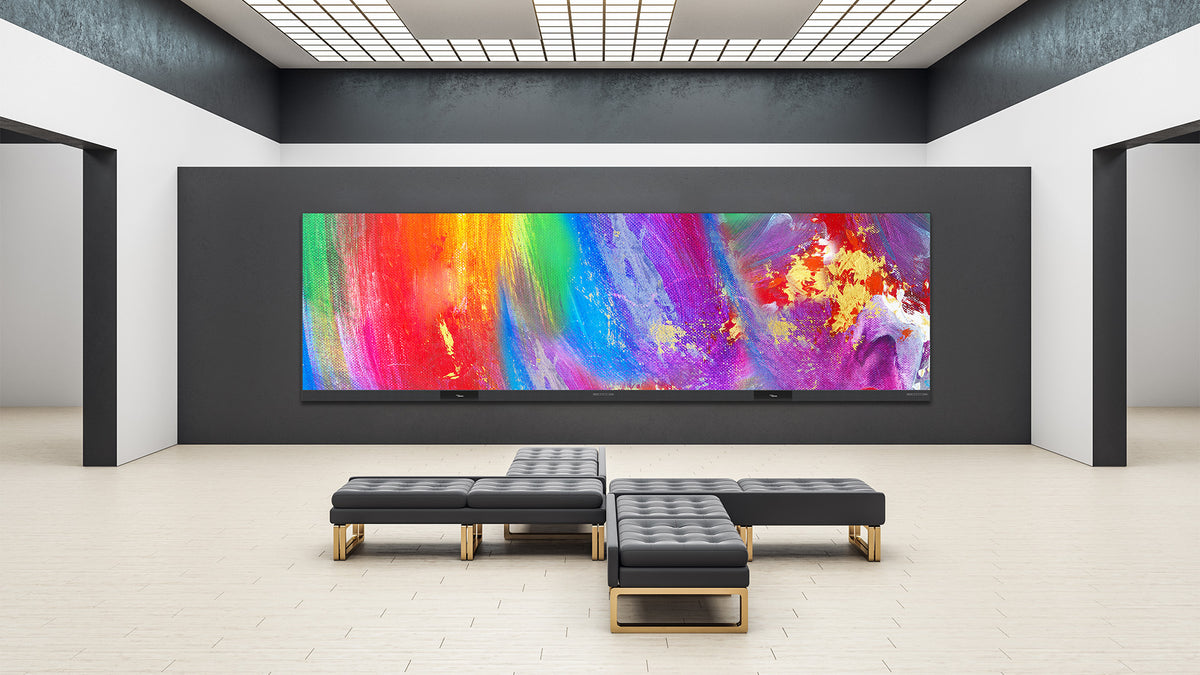

A seamless 135-inch picture for presentations, public spaces and immersive environments. Flip-chip COB LED technology brings the display, sound and control together in one installation.
- Native Full HD 1920 × 1080 resolution
- 700-nit maximum brightness
- 3840Hz refresh rate and 15,000:1 contrast
- Front-accessible, hot-swappable LED tiles
Confirm mounting, optional accessories, electrical requirements and delivery for your installation before ordering.
One seamless display. A complete experience.
Full HD imagery, integrated audio and front-access servicing come together in an all-in-one LED display.

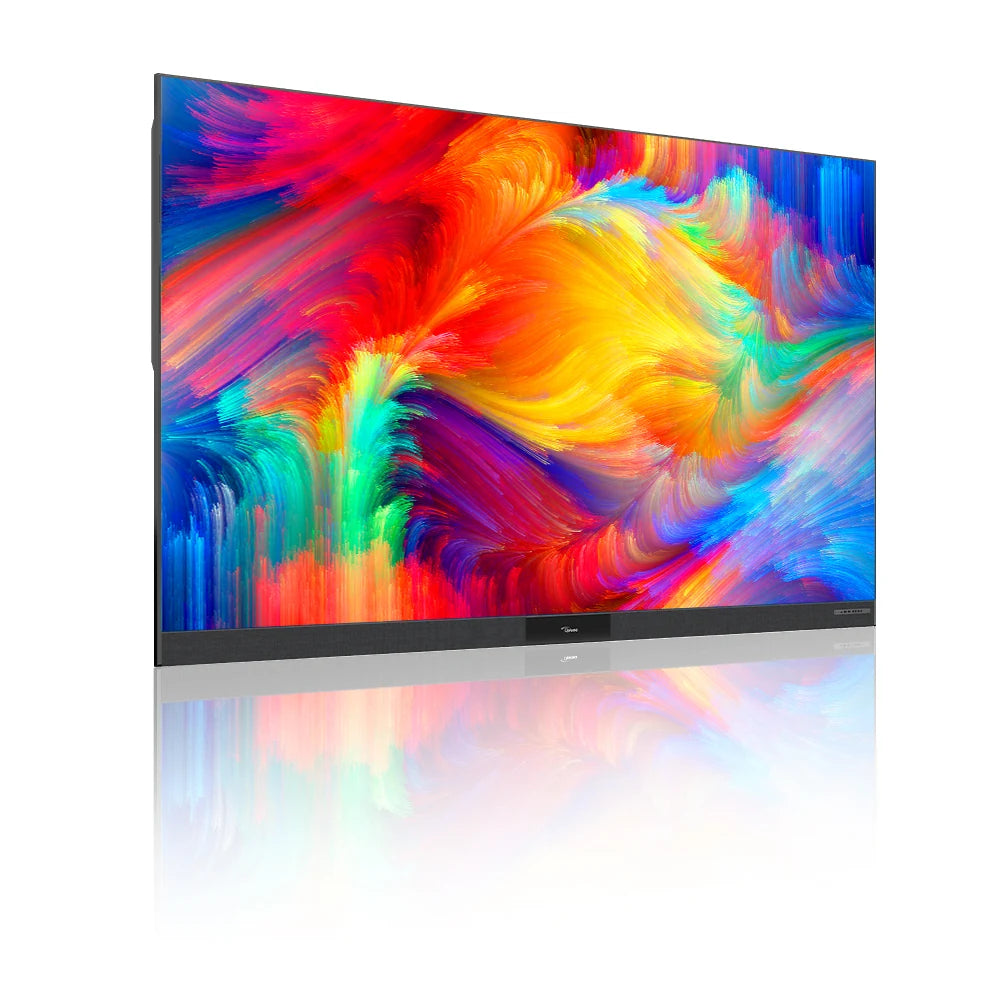

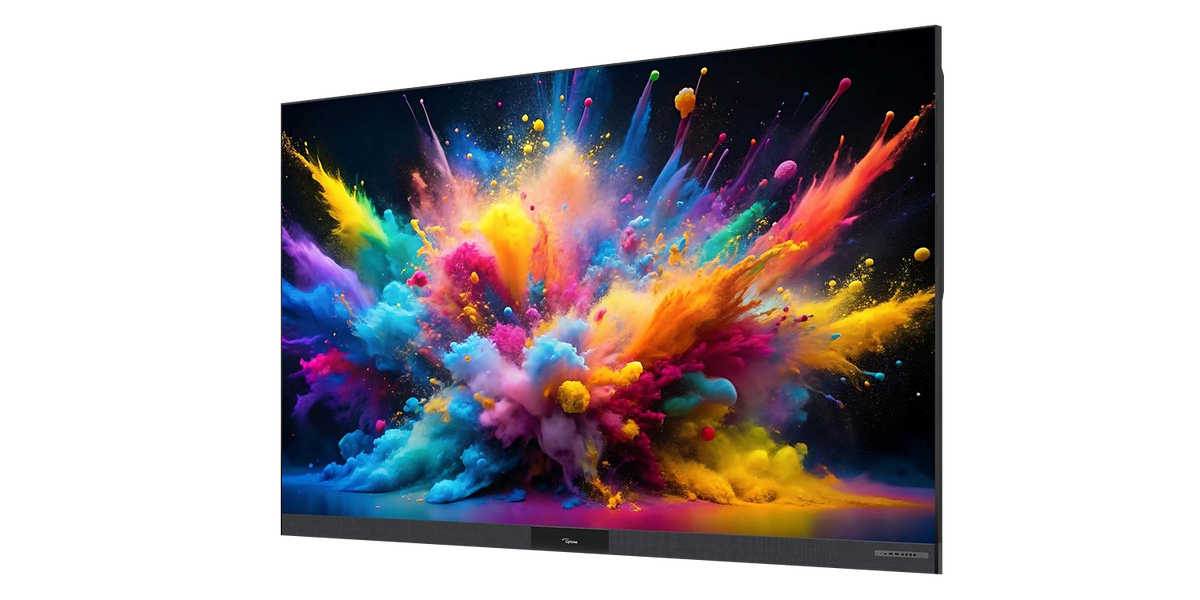

Color with depth and presence
Wide color coverage and flip-chip COB technology bring large-format content to life.
Motion that stays smooth
A 3840Hz refresh rate supports fluid video playback.

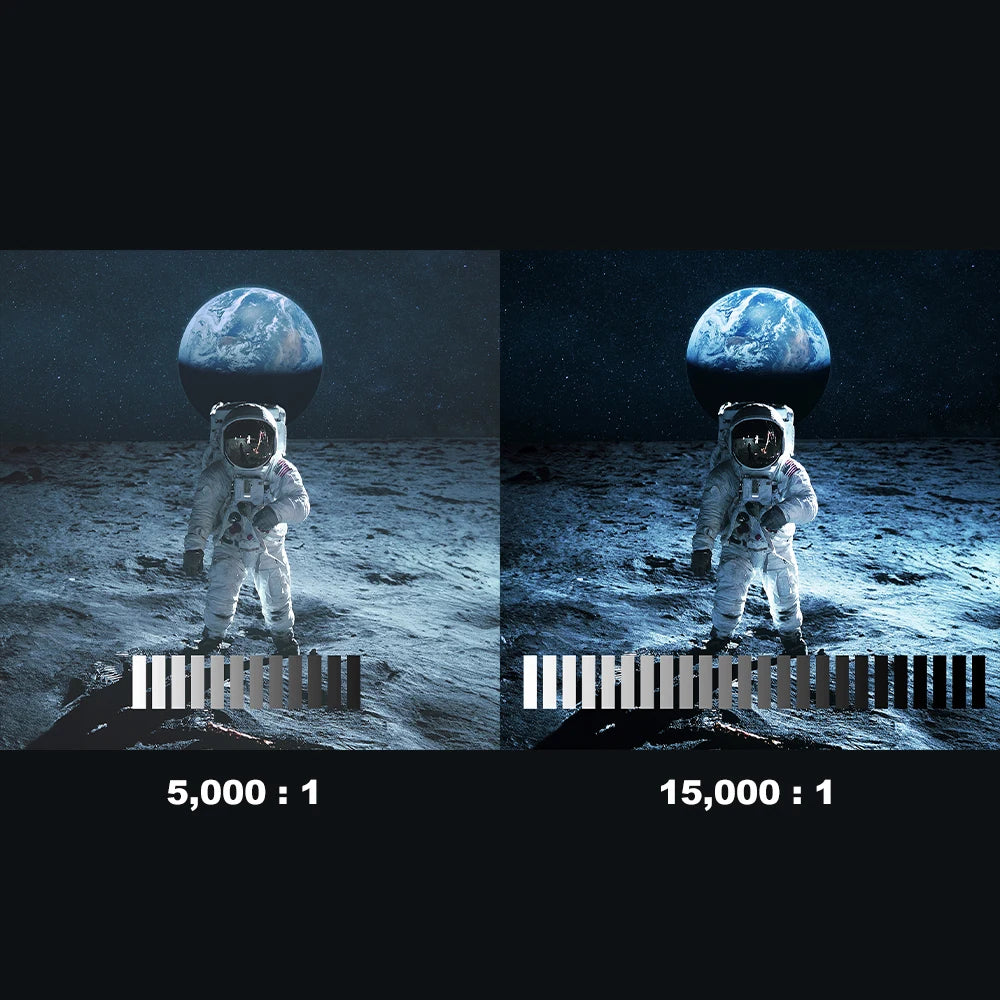

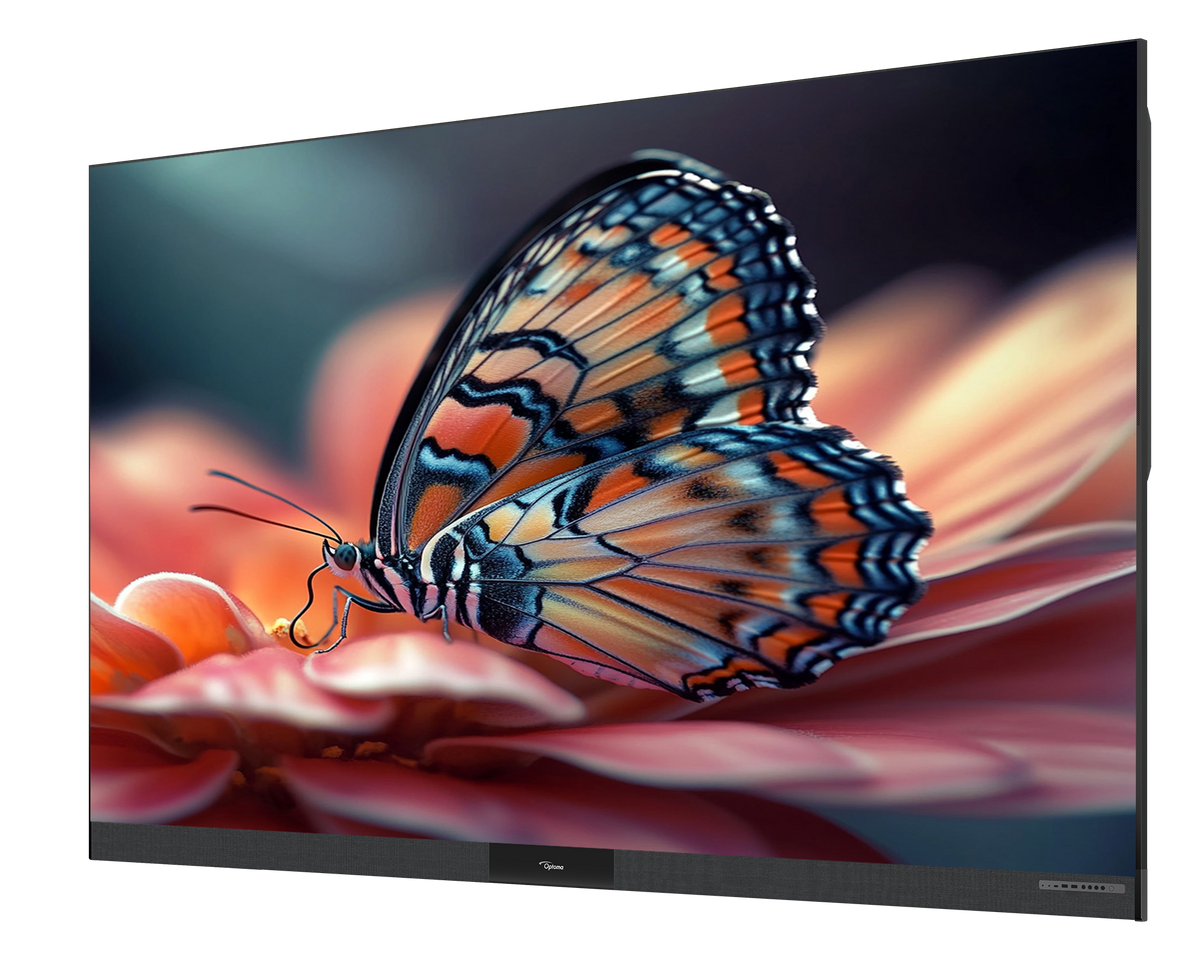

Detail through light and shadow
A 15,000:1 contrast ratio preserves definition across the image.

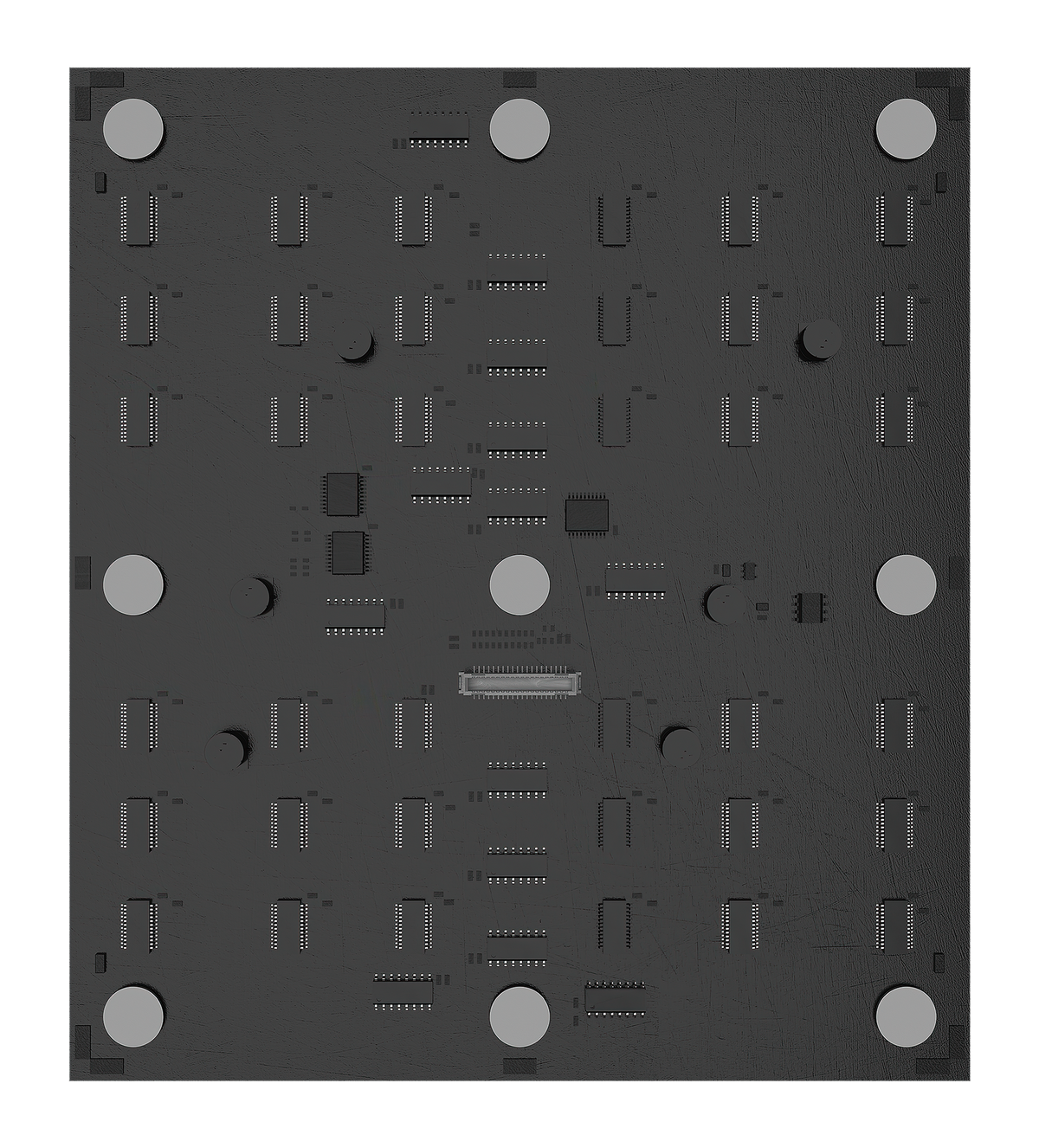

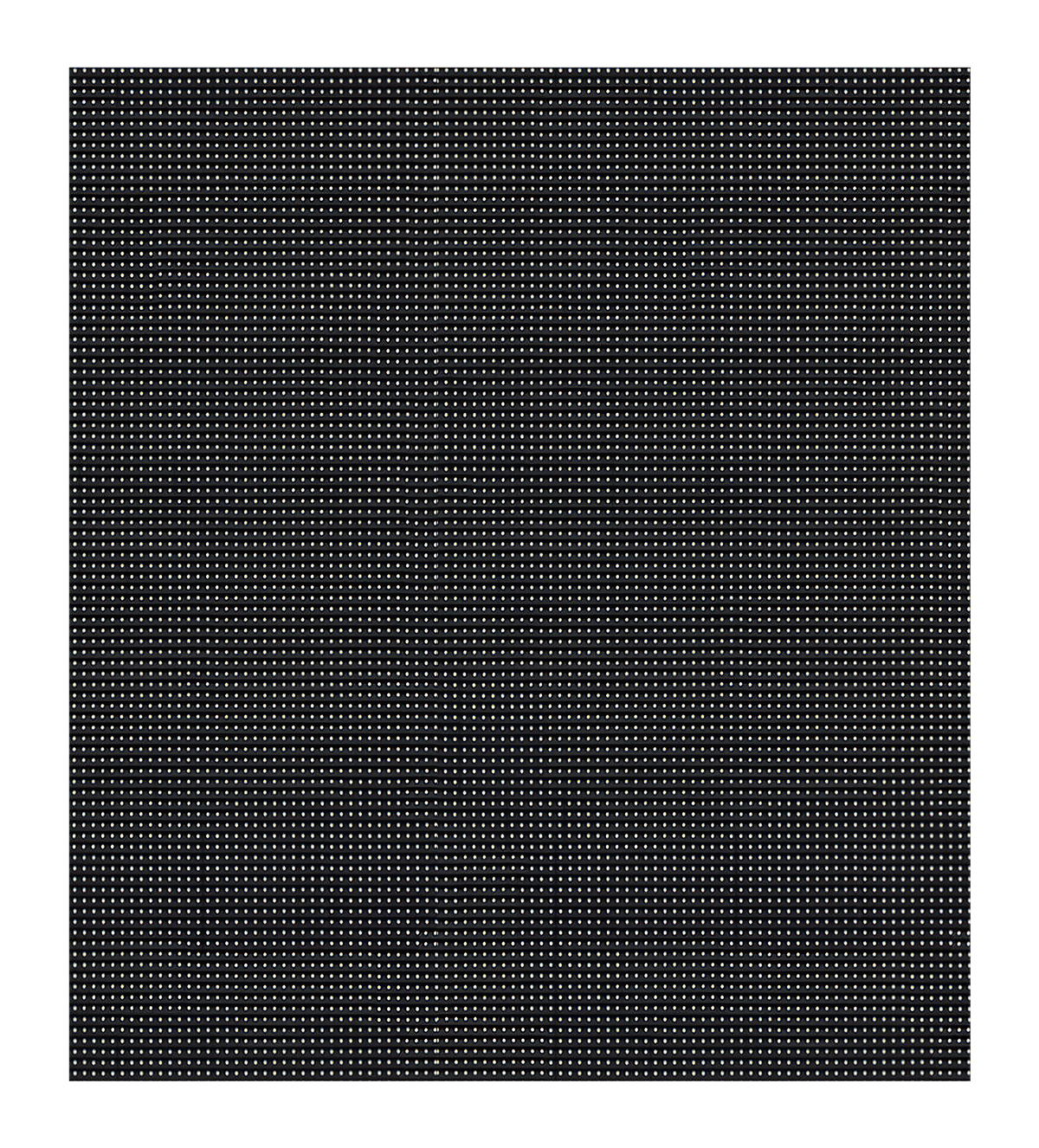

The difference is in the LED surface
Flip-chip COB technology creates a seamless, durable display surface.
Made for everyday use
The COB construction supports durability and convenient maintenance.
A slimmer profile. More screen.
The display chassis is approximately 31 mm deep, with a total mounted depth of approximately 51 mm (2 inches).
A considered installation
Preassembled columns reduce assembly work and simplify setup.

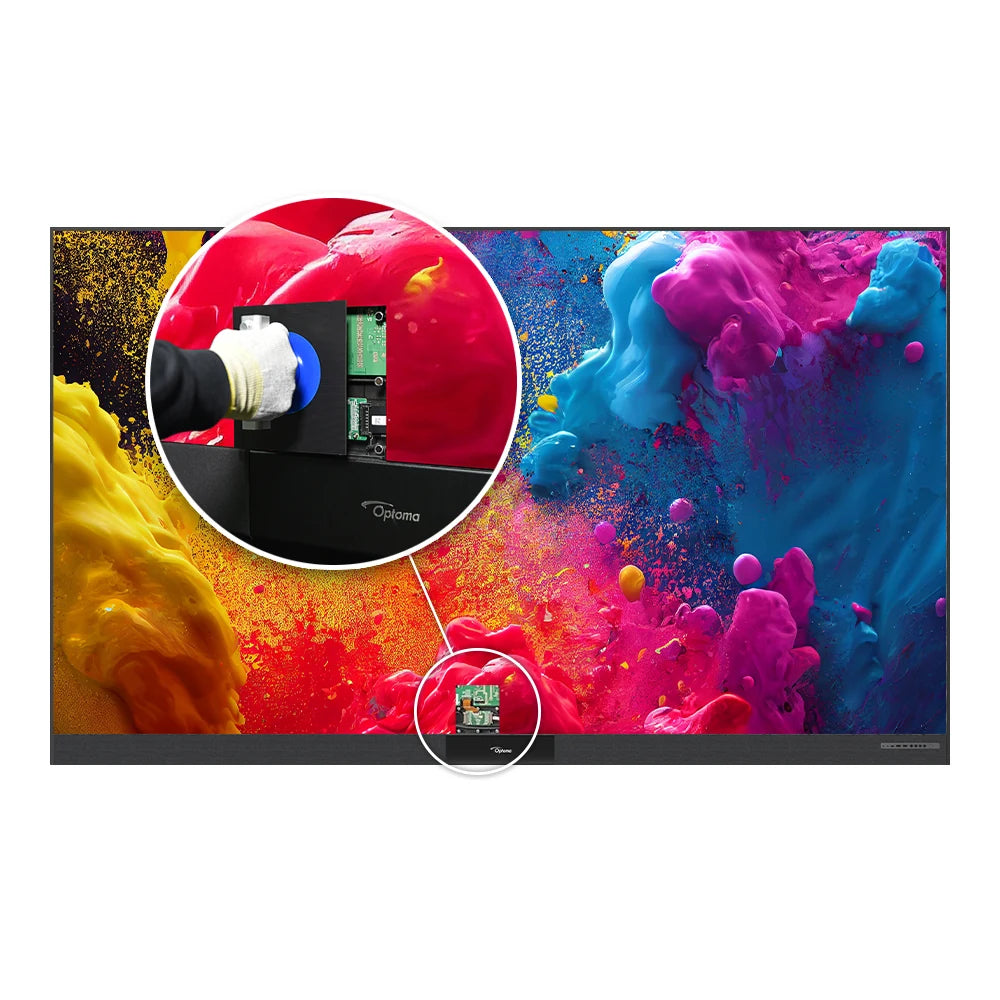

Service from the front
Front-accessible, hot-swappable tiles simplify component replacement.

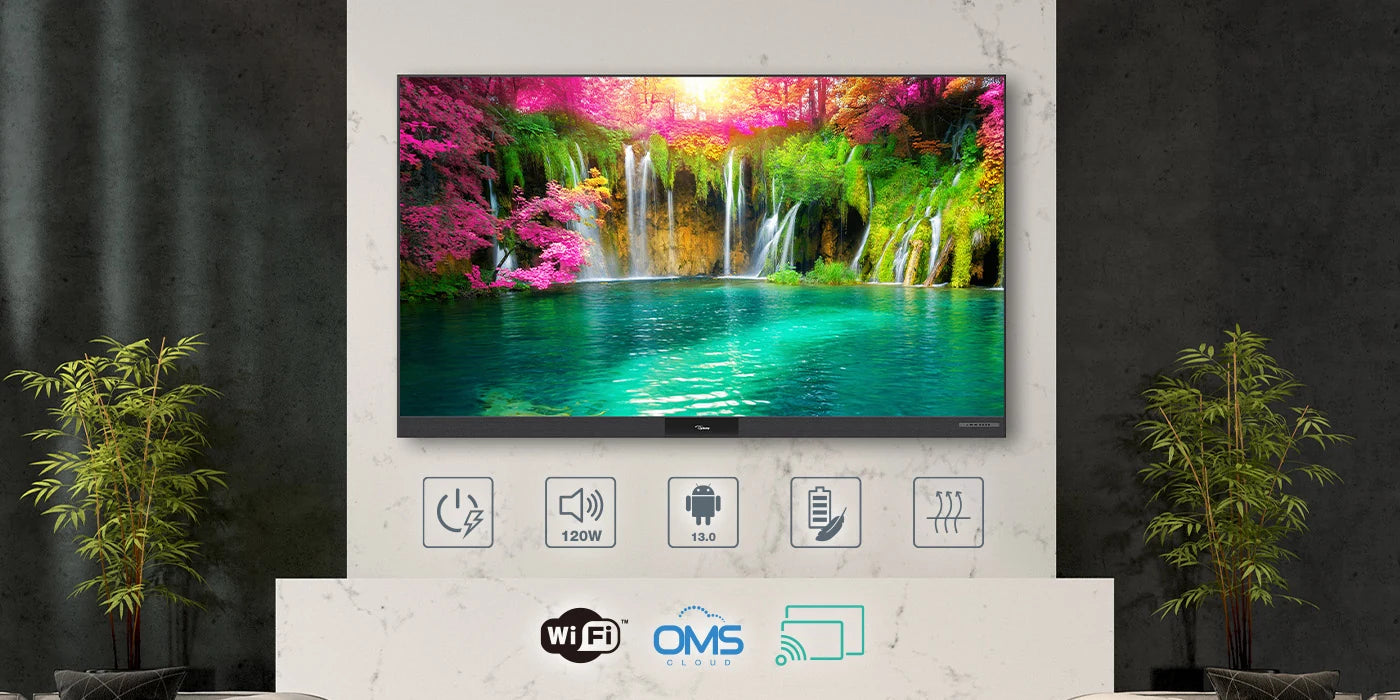

An intelligent display platform
Android 13 supports connected applications and content sharing. Wi-Fi requires the optional SI07E adapter, sold separately. Google Play Store access is not supported.
One place for display management
Monitor connected displays and adjust supported settings remotely.

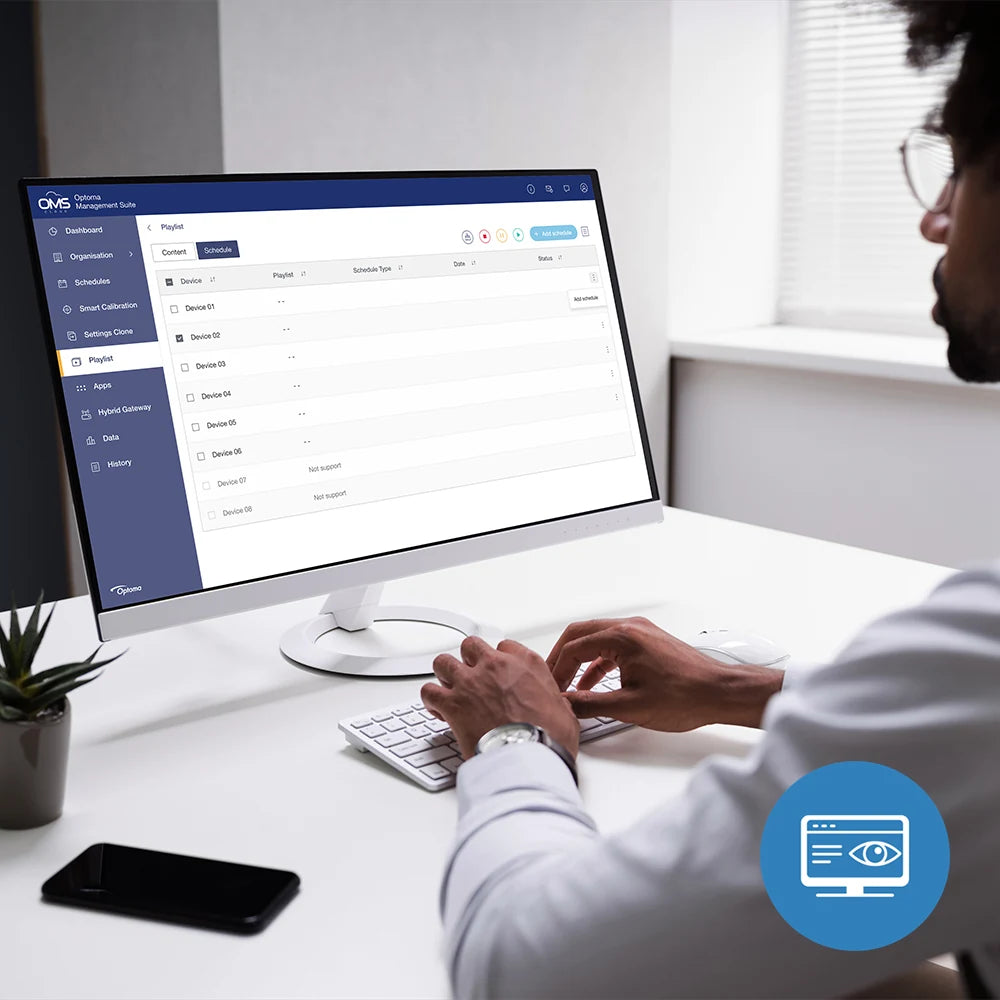

See device status
Check connected display status from the management platform.
Make adjustments remotely
Manage supported display settings from a central location.
Send content across your displays
Broadcast supported multimedia to connected screens.

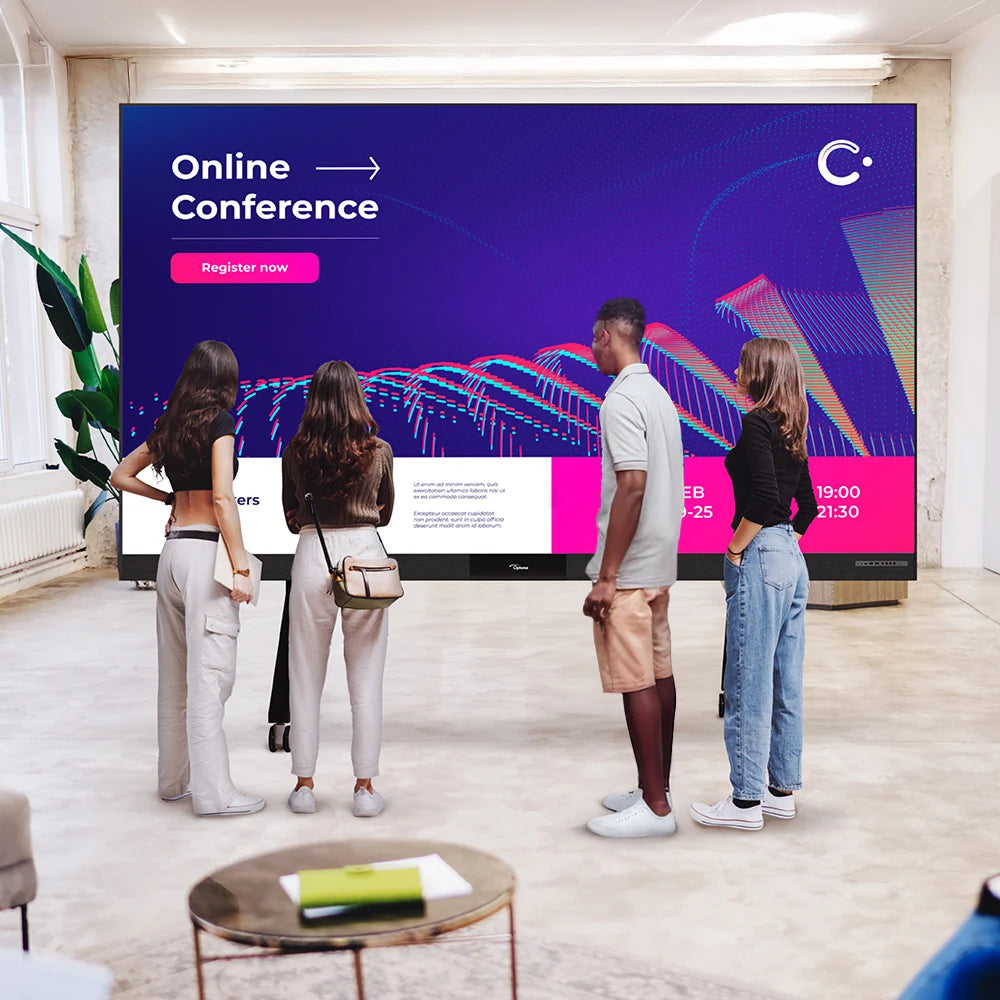

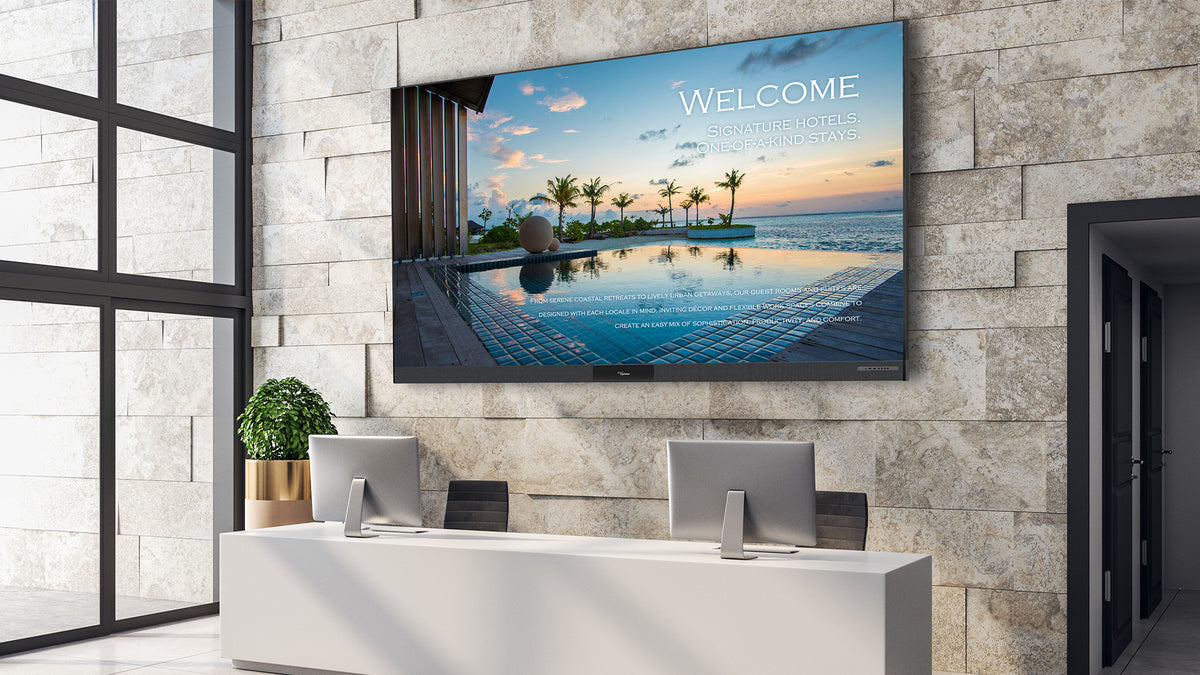

Content on your schedule
Plan and deliver signage across connected displays.
Bring more people into the presentation
Share content from compatible devices for meetings and hybrid collaboration.

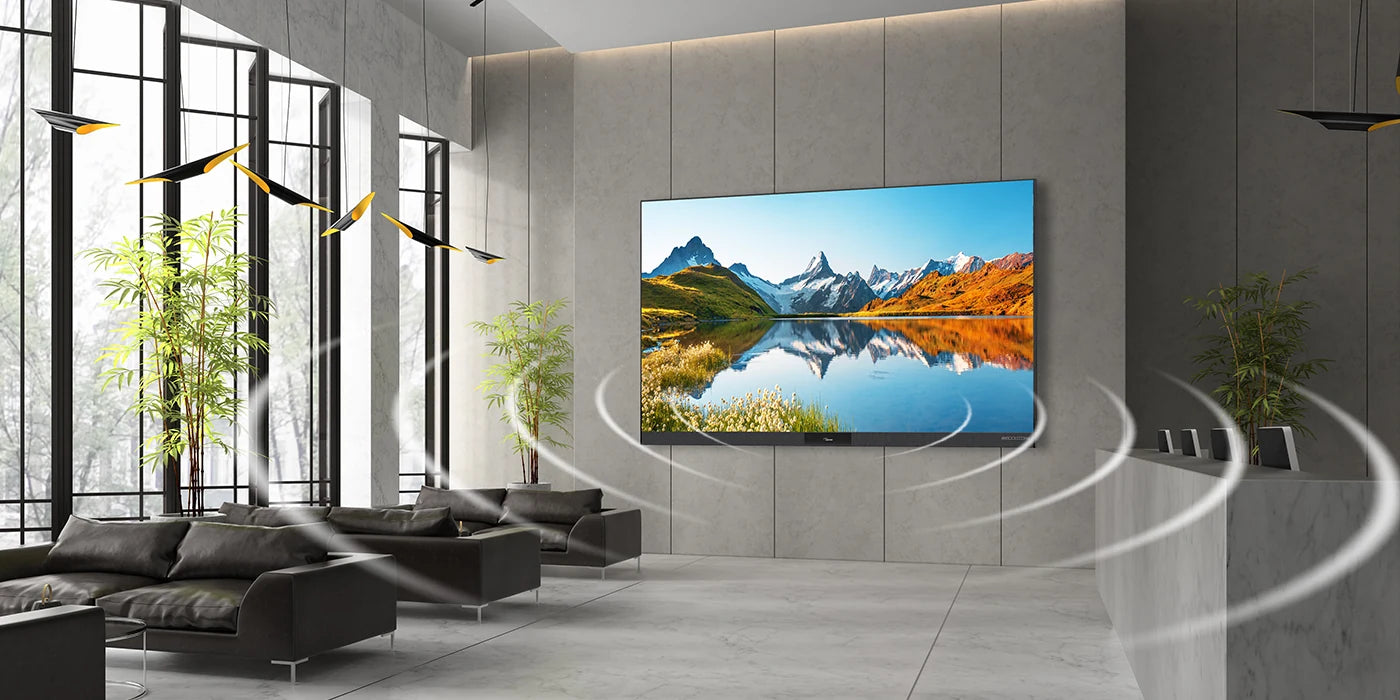

Sound built into the experience
The integrated speaker system provides 120W of total output.
Control that suits the installation
Compatible external processing and management accessories are sold separately.
FHDC135 / Videos
See it in action
Product overviews and feature demonstrations.
FHDC135 all-in-one display overview
Product family overview. Features and installation details vary by model.
COB surface demonstration
Feature clip · 0:05
Slim display profile
Silent feature clip · 0:03
Column assembly and installation
Silent feature clip · 0:05
Assembly shown for illustration. Column count varies by screen size.
FHDC135 / Technical details
Specifications
Product parameters
- Screen size
- 135"
- LED type
- COB Flip-Chip (chip on board)
- Pixel pitch (mm)
- 1.56
- Resolution
- 1920x1080
- Recommended viewing distance
- ≥ 10.5 ft
- Installation mode
- Wall-mount, floor stand
- Number of tiles
- 200
- Assembly structure
- 5 LED columns
- LED tile dimension
- 150 mm x 168.75 mm / 5.9" x 6.64"
Optical parameters
- Brightness (max)
- 700 nits
- Refresh rate
- 3840Hz
- Gray scale
- 13-bit (native) 13+6 bit (software enhanced)
- Contrast ratio
- 15000:1
- Color temperature
- 2300~9300K (Adjustable)
- Color gamut
- DCI-P3: 92.42%, Rec. 709: 99.36%
- Viewing angle
- Horizontal 165°, Vertical 165°
- LED lifespan (hours to half brightness)
- 100,000 hours
System parameters
- Operating system
- Android 13.0
- CPU
- Four Cortex-A76 + four Cortex-A55, frequency 2.4 GHz
- RAM
- 8 GB
- Storage
- 64 GB

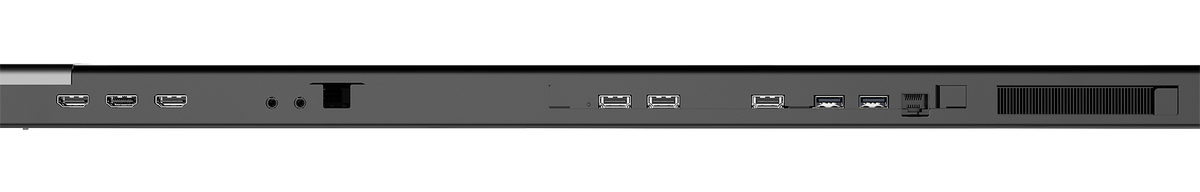

Connectivity
- Inputs
- 3 x HMDI 1.4, 1 x HDMI 2.0 (4K compatible), 1 x USB Type C (5V,1A), 2 x USB 3.0, 1 x Audio In (3.5mm)
- Outputs
- 1 x HDMI, 1 x Audio Out (3.5mm)
- Communication ports
- 1 x RS232 (RJ45), 1 x USB (service), 1 x LAN (RJ45) (1000M), 1 x RJ45 (service)
Multimedia support
- Image
- JPEG/JPG/BMP/GIF/PNG
- Audio
- MP2/MP3/WAV/FLAC/AAC/M4A
- Video
- 3GP/AVI/FLV/MKV/MOV/MP4/MPG/TS/WEBM
Audio/Sound
- Speaker count & Watts per speaker
- 2 x 30 W (front); 2 x 15 W (left); 2 x 15 W (right)
Environmental parameters
- Operation temperature
- -10℃ ~ 40℃
- Operation humidity
- 10% ~ 80% RH, no condensation
Power
- Input power range
- AC 100 ~ 240 V, 50 ~ 60Hz
- Standby power
- ≤0.5 W
- Power consumption (average)
- 490 W
- Power consumption (max)
- 1460 W
Applicable software
- Optoma Management Suite
- Yes (OMSC)
Weight and dimensions
- Dimensions (overall size) W x H x D
- 119.29" x 71.36" x 1.22" (2" total mounted depth)
- Dimensions (display area) W x H
- 118.11" x 66.43"
- Weight
- 242.50 (without wall mount brackets)
Shipping
- Dimensions (cabinet, tiles) W x H x D
- 1900 mm x 1215 mm x 775 mm / 74.8" x 47.83" x 30.51“
- Gross weight (cabinet, tiles)
- 212 kg / 467.38 lbs
- Dimensions (system box, wall mount) W x H x D
- 2064 mm x 556 mm x 497 mm / 81.25" x 21.88" x 19.56"
- Gross weight (system box, wall mount)
- 68 kg / 147.71 lbs
- UPC
- 796435 69 091 5
Certifications
- Safety
- CB, ETL
- EMC
- CE, FCC
- Environment
- RoHS, REACH, WEEE
Standard accessories
- Spare LED tiles
- 4
- Wall mount bracket
- 1
- Front tile puller
- 1
- System control box maintenance tool
- 1
- Power cord
- 4

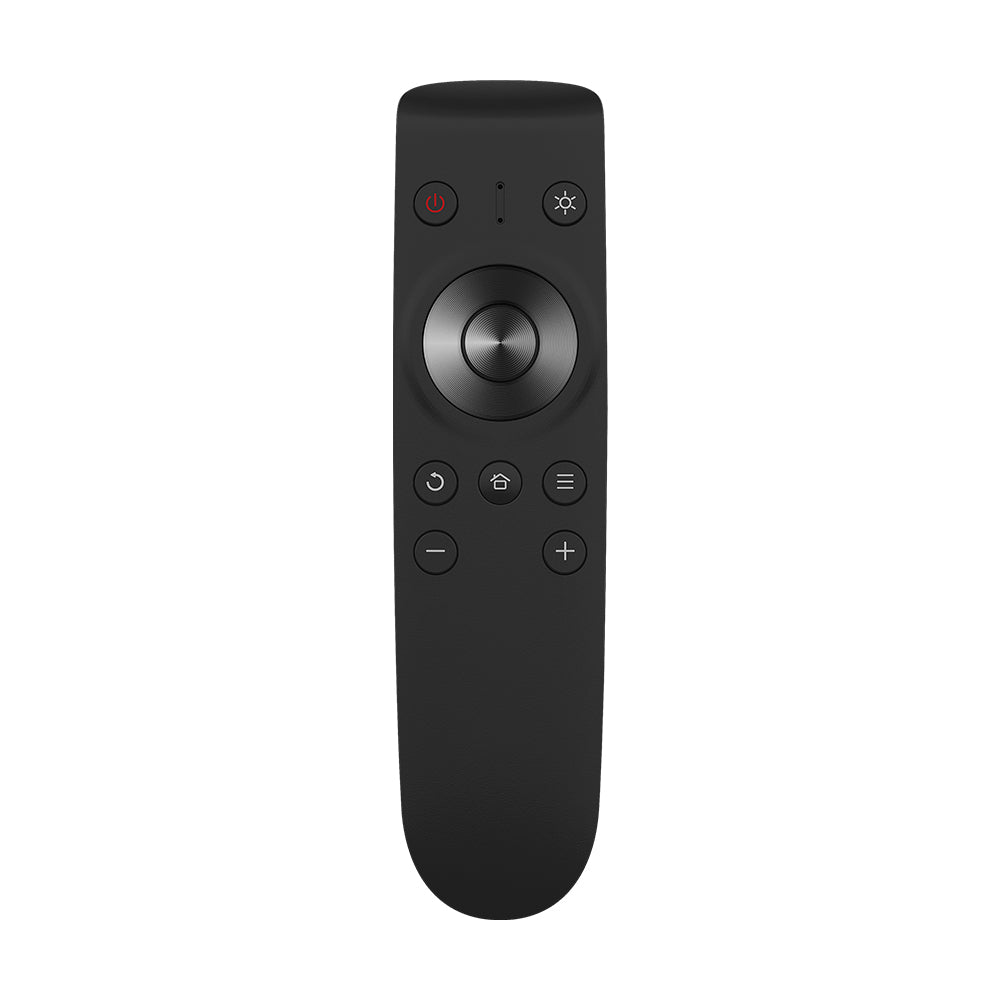

- Remote control
- 1
- USB flash drive (user manual, installation guide)
- 1
Product maintenance
Care for Optoma ProScene FHDC135 135″ All-in-One LED Display
Switch off and disconnect power before cleaning. Follow the supplied model manual for the screen surface, approved cleaning materials and ventilation openings. Do not spray liquid directly onto the display, apply pressure to the panel or open its housing. Use qualified support for internal servicing and any LED-module work.
Follow the manufacturer’s manual for model-specific cleaners, service intervals and replacement parts. To request the correct manual, contact hello@thebackyardlegacy.com
Shipping and returns
Shipping and returns for Optoma ProScene FHDC135 135″ All-in-One LED Display
Delivery
The shipping service, destination coverage and charges for this item require confirmation before purchase.
Confirm the selected model, package dimensions, delivery service and included accessories. Check the package and equipment on arrival; mounting, wiring and setup are separate unless included in the written quote.
Only the delivery services and costs expressly included in this item’s terms or your written quote apply. Confirm any additional handling before ordering.
Lead time
Contact us for lead time
Confirm current stock and the schedule for your selected option and delivery address. Preparation or production, transit and any installation are separate stages; the listed estimate is not a guaranteed arrival date.
Returns
This item’s change-of-mind return eligibility, deadline, return freight and any fees require written confirmation before purchase. Damage and defect claims are separate.
Request authorization and the correct return address before sending this item back. Damage, defects and incorrect deliveries are handled separately from change-of-mind returns; contact us with your order number and photographs. Cancellation depends on the order’s actual dispatch, order commitment or production stage and the terms disclosed for this item.
For this product’s written terms, contact hello@thebackyardlegacy.com.
FHDC135 / Product resources
Downloads
Manuals, product information and supporting documents.
