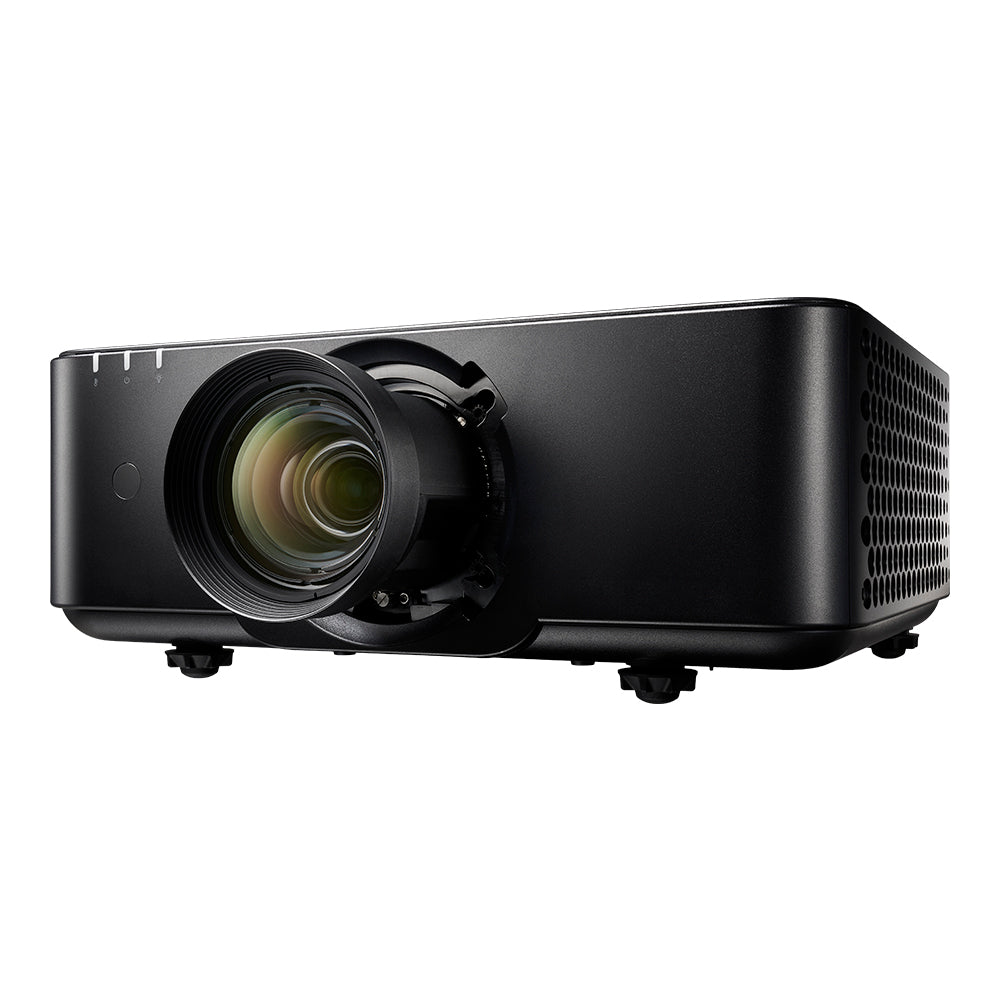

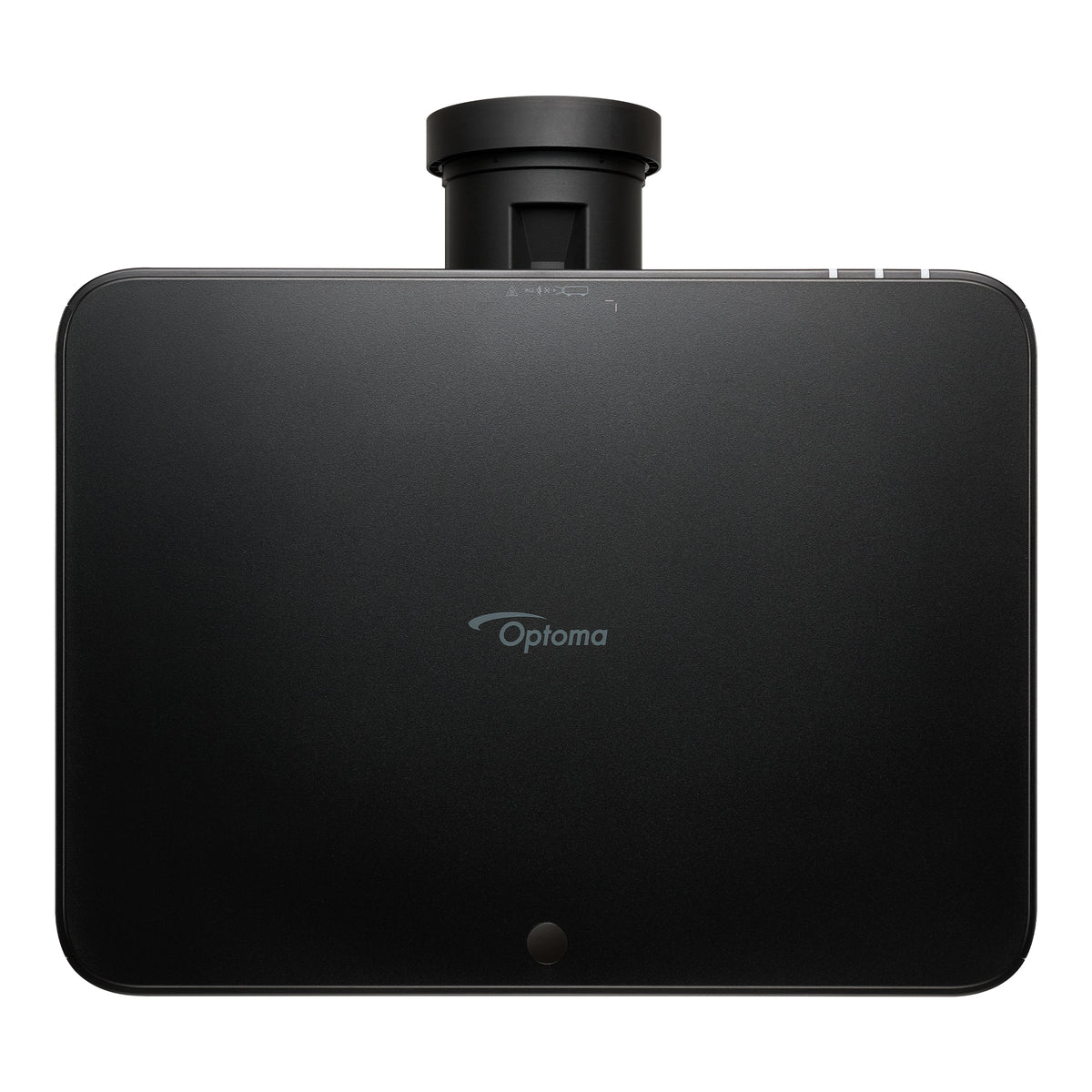

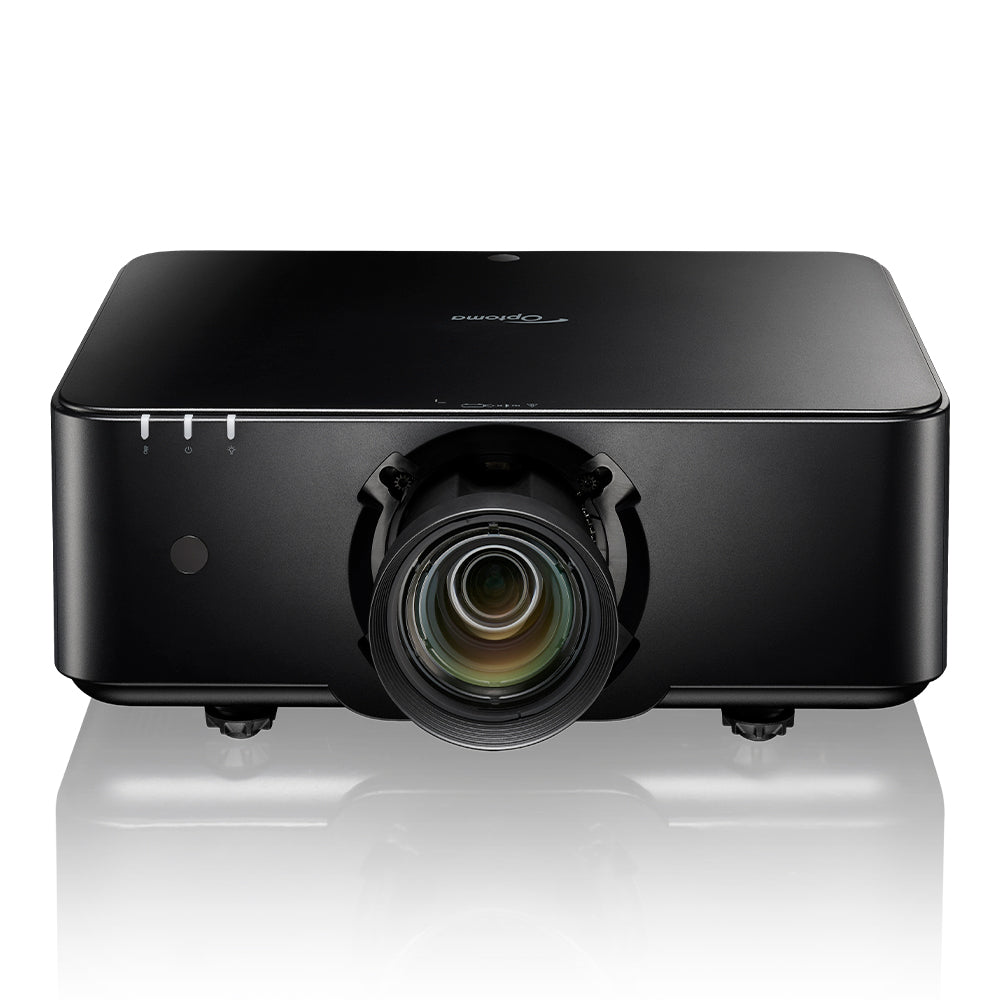

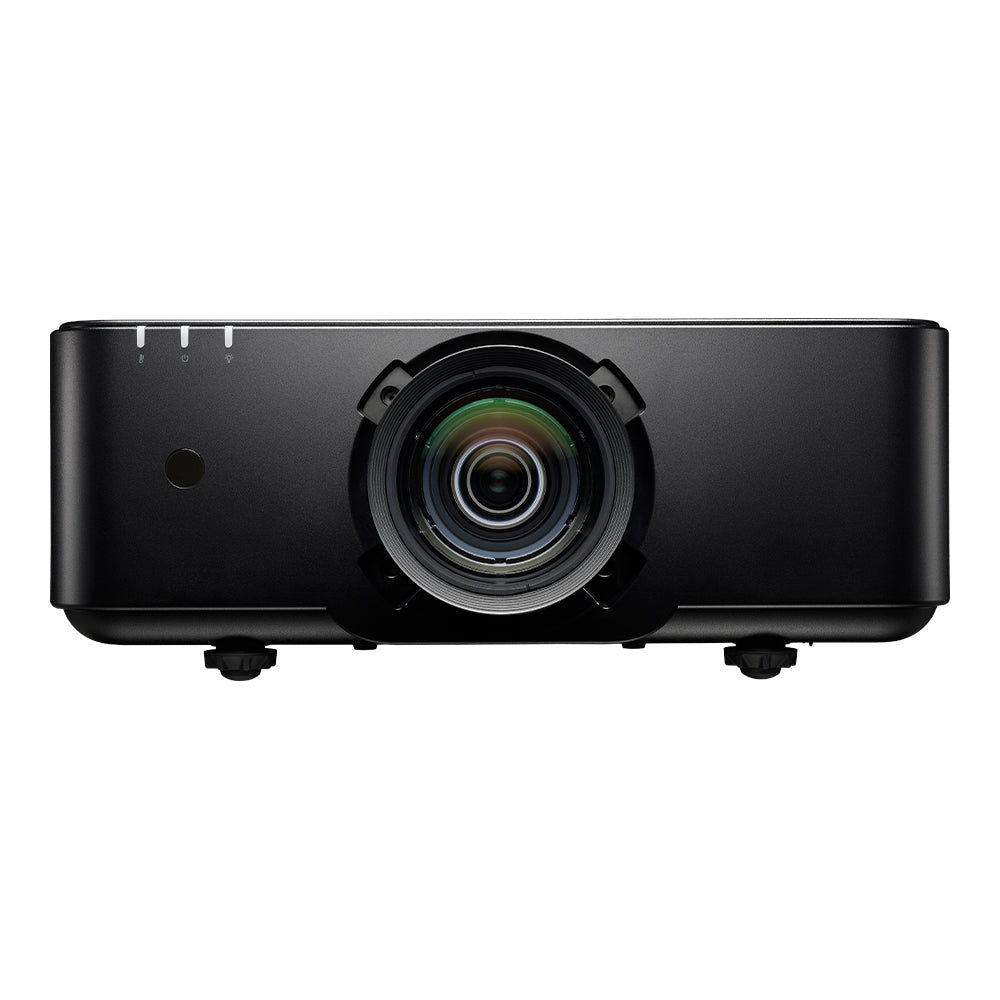

ProScene ZK1000
10,000-lumen 4K UHD+ laser projection
Bring detailed, high-brightness projection to immersive spaces, large venues and professional installations. The ZK1000 combines WQUXGA resolution with flexible motorized optics.
- 10,000 ISO lumens
- 3840 × 2400 WQUXGA resolution
- DuraCore laser illumination
- Interchangeable lens system; lens sold separately
A compatible lens is required and sold separately. Images may show an optional lens. Confirm installation, availability and delivery before ordering.

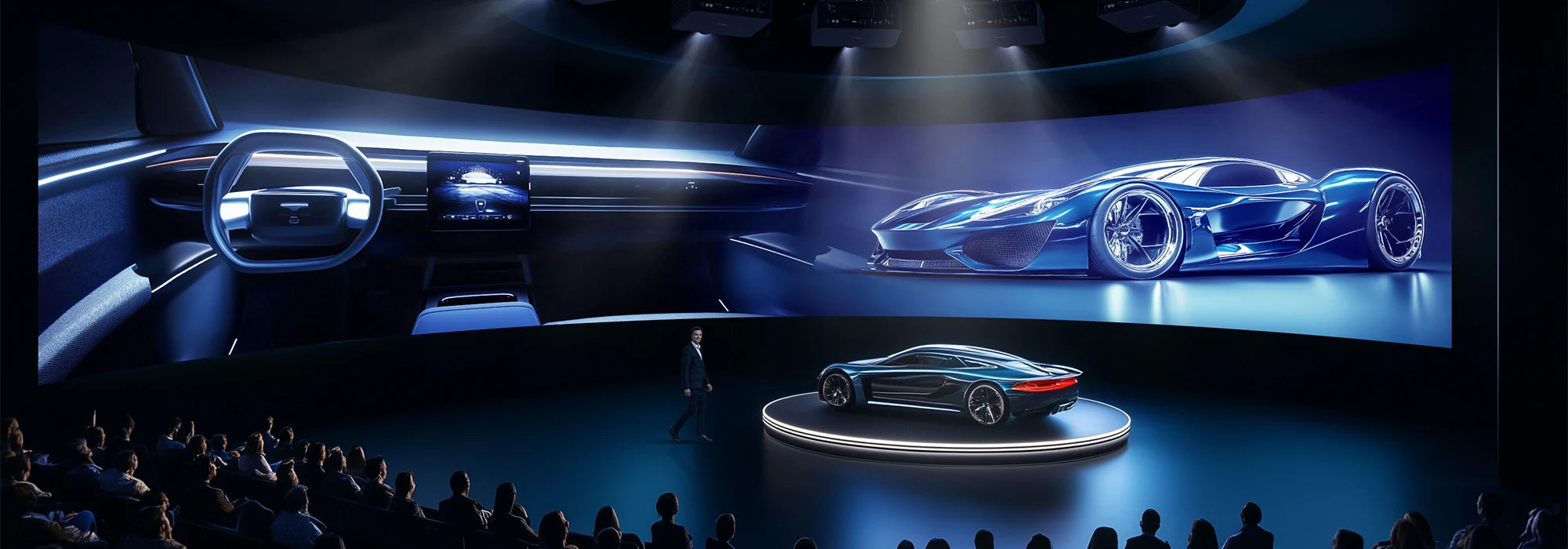

A bigger canvas. Every detail in focus.

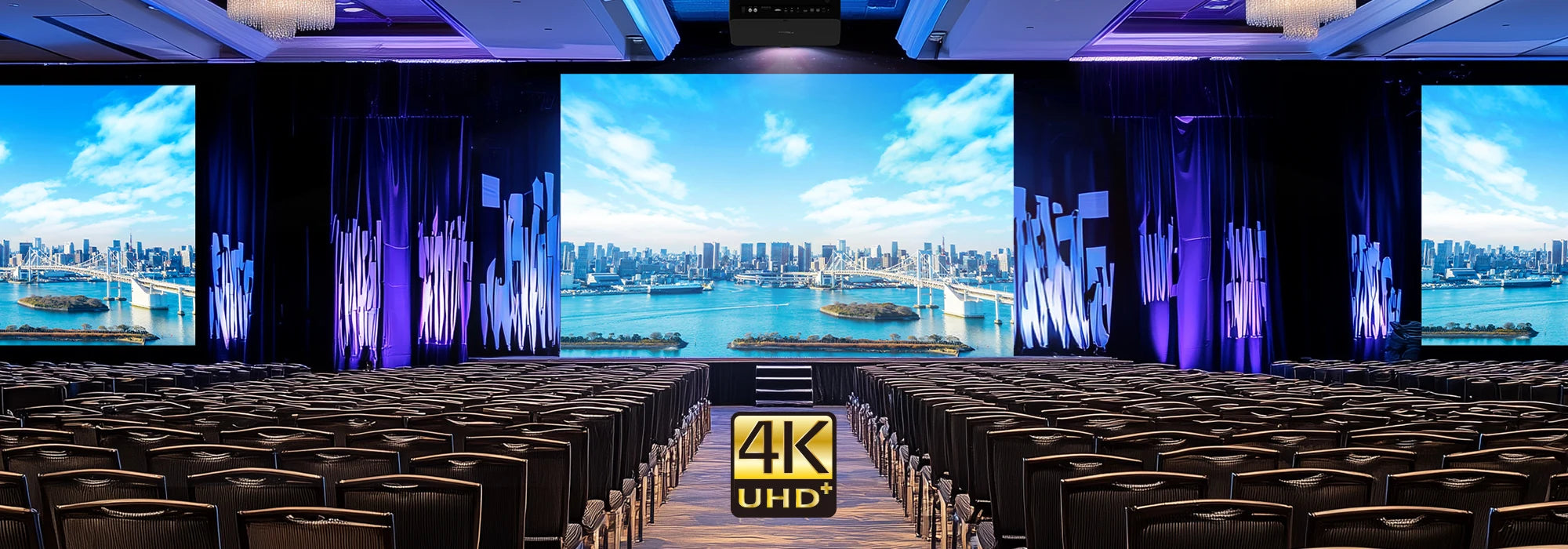

4K UHD+ detail
WQUXGA resolution provides 3840 × 2400 pixels for detailed large-format images.

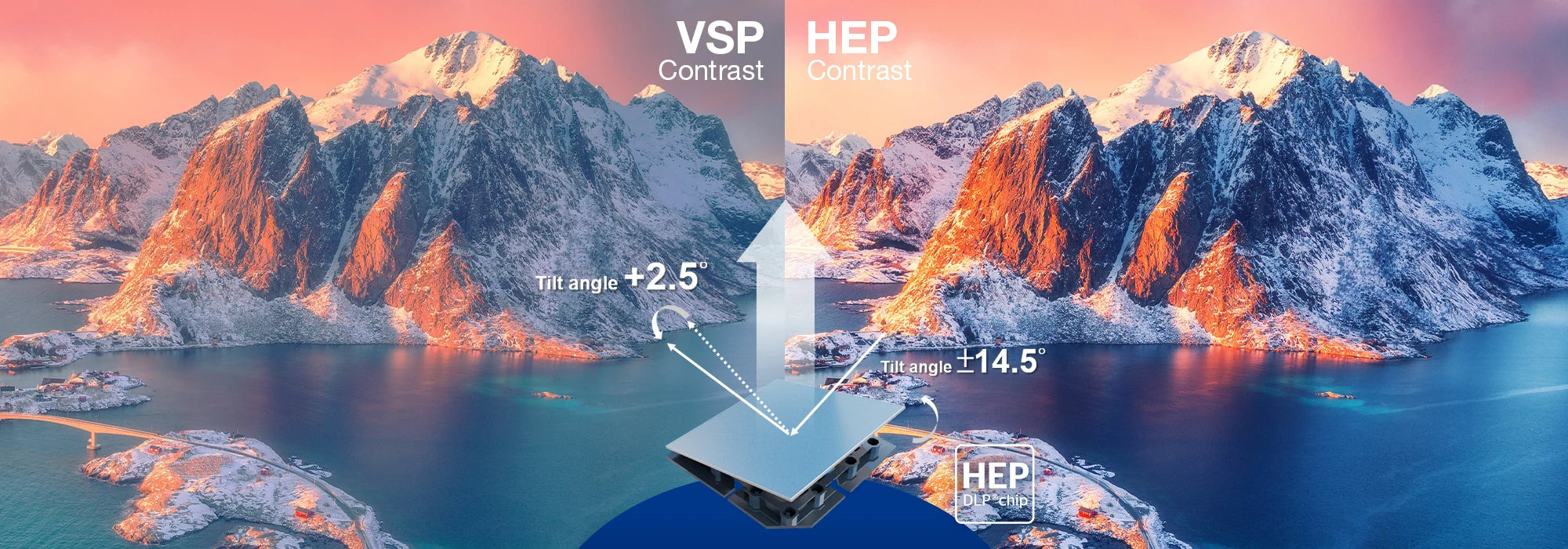

Engineered for a sharper image
The TI HEP DLP chip combines high brightness, improved contrast and efficient imaging.
Projection that fits the space

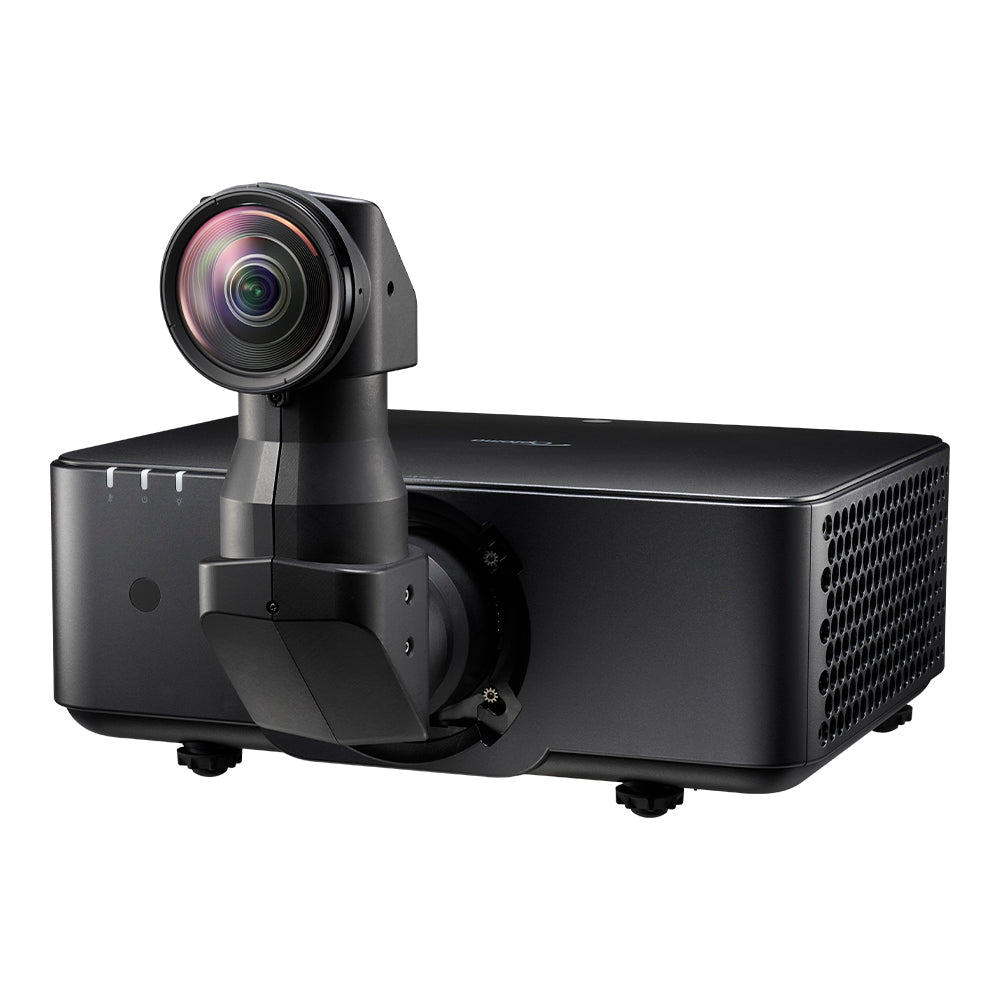

A front-facing ultra-short-throw lens supports concealed installations and zero-offset projection. Optional lens sold separately.

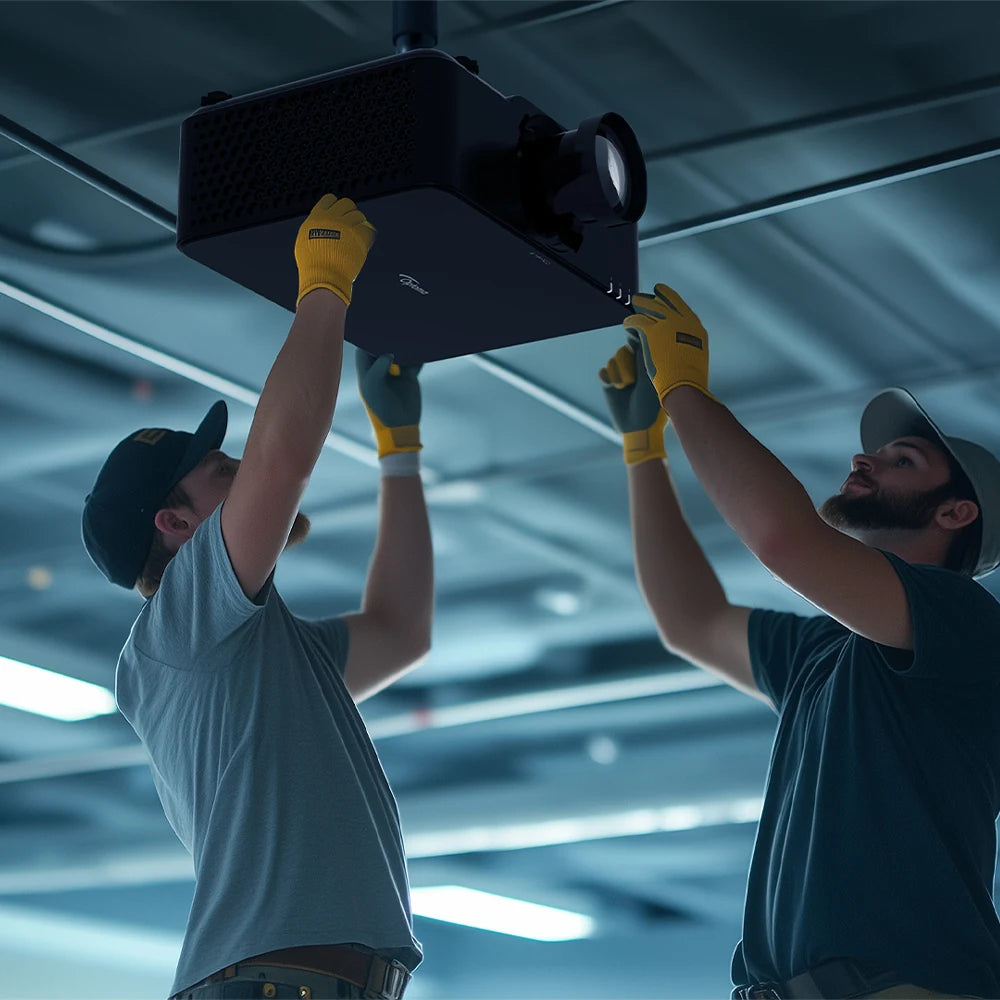

A more compact installation
The compact chassis and motorized optics simplify positioning, including overhead installations.
Projection and lighting, in sync
Art-Net support links projection with compatible lighting consoles through Ethernet.

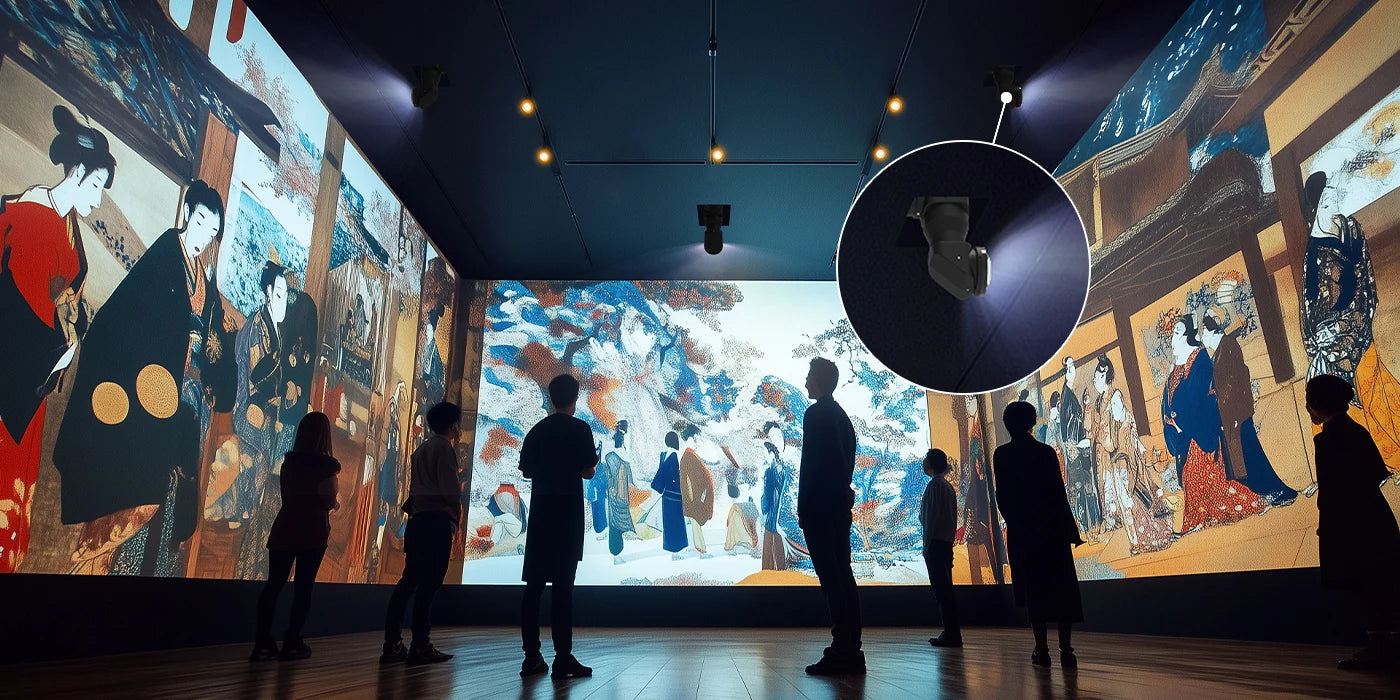

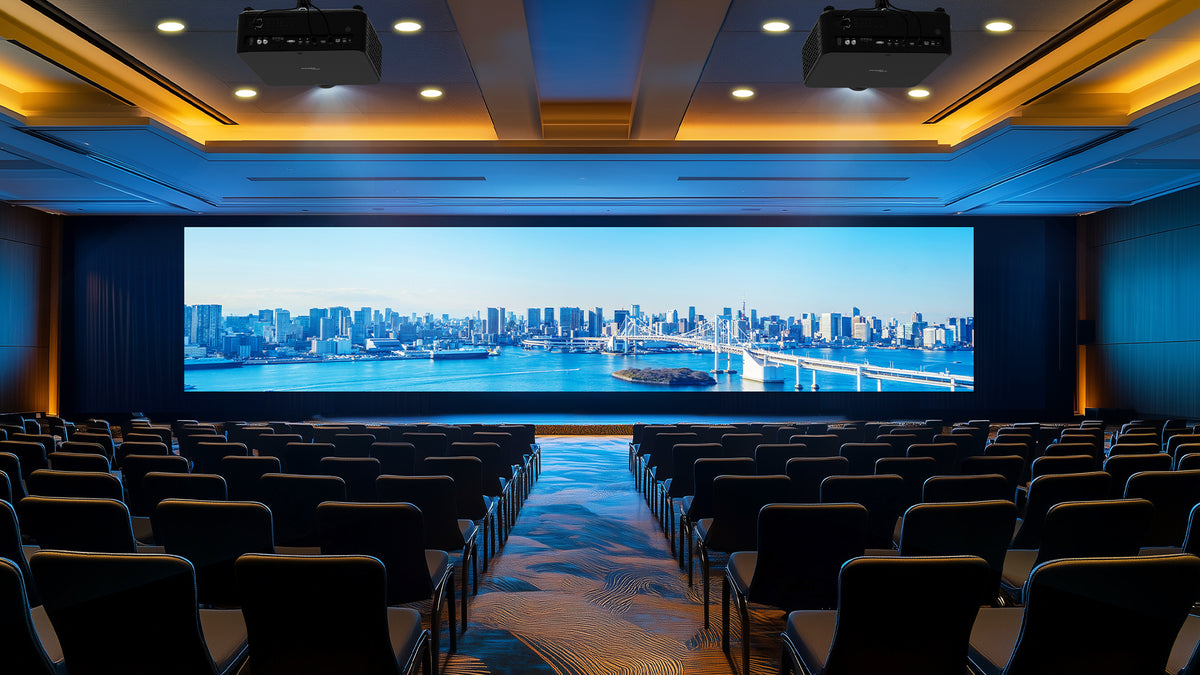

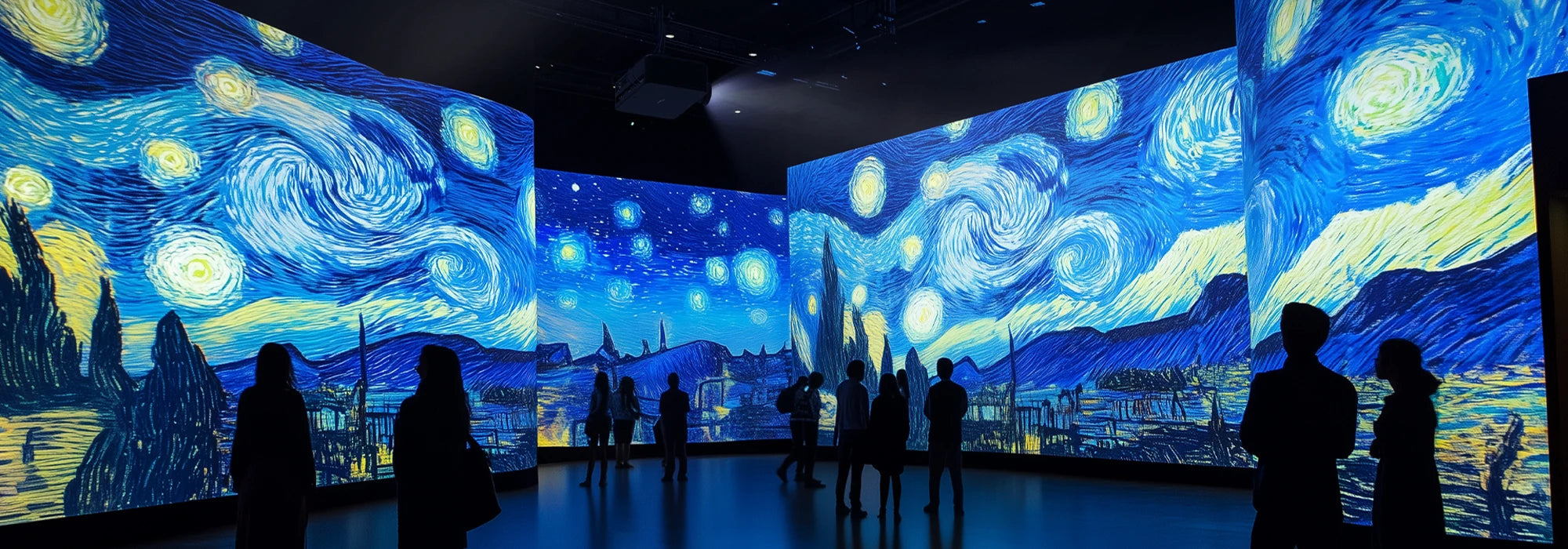

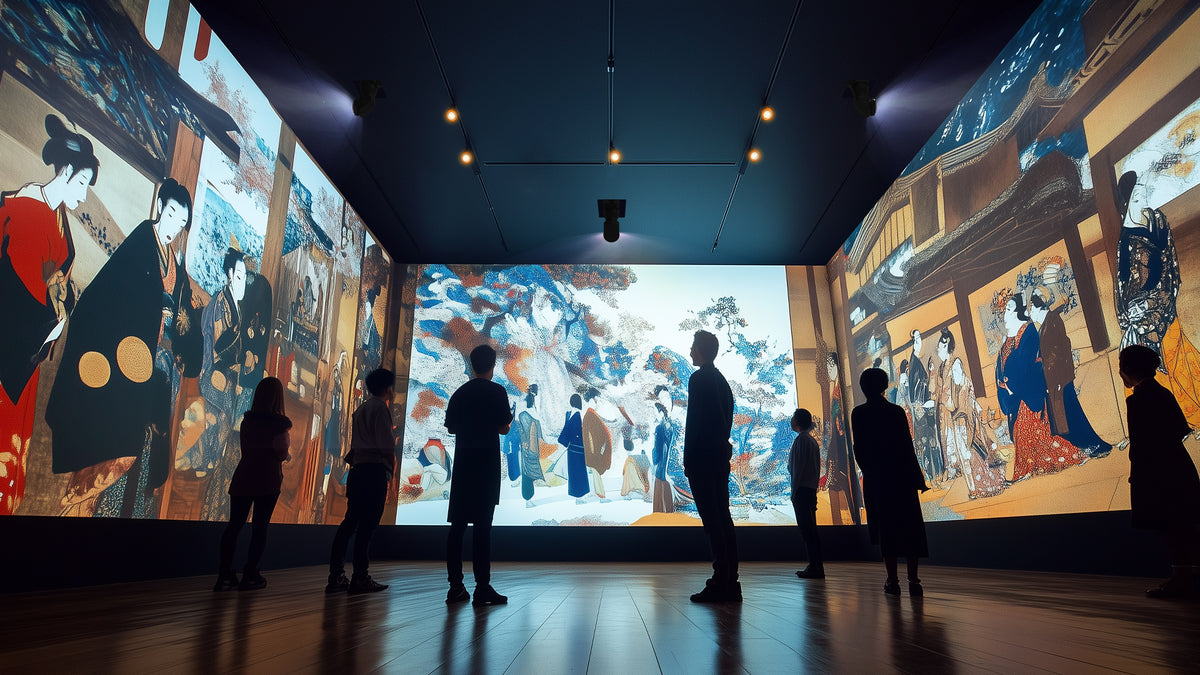

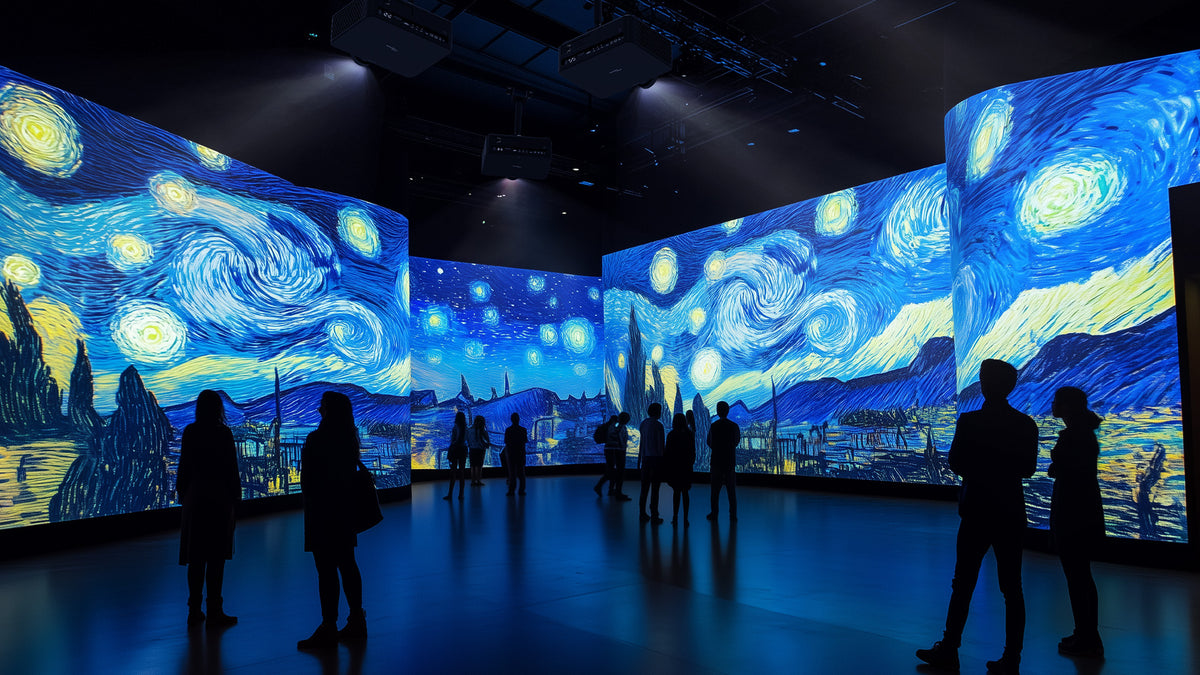

Built for immersive spaces
Manage your installation remotely
Cloud and LAN management support monitoring, diagnostics and control across connected projectors.

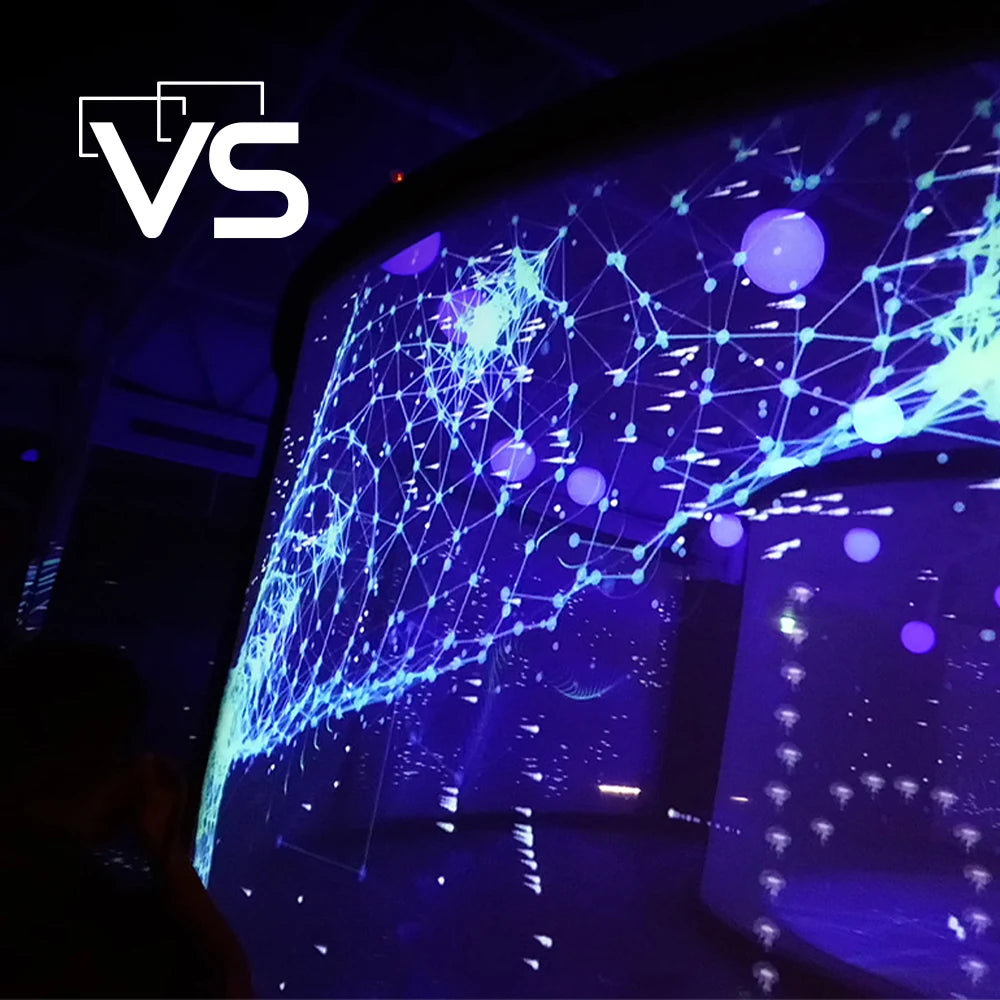

Shape the image to your vision
Use Visual Suite software to adjust image geometry, edge blending, masking, brightness and color. This workflow uses external software for projector adjustment.

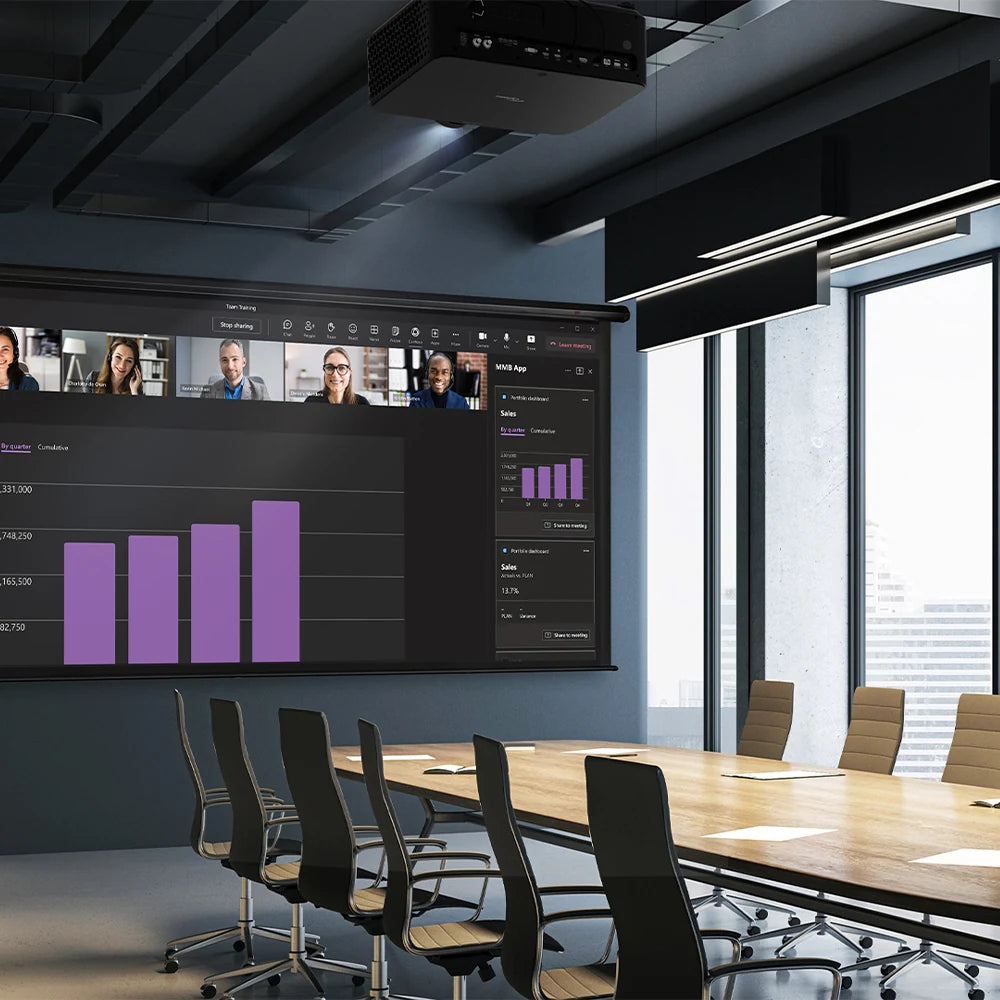

More room for collaboration
Wide aspect-ratio support accommodates Microsoft Teams Front Row meeting layouts.

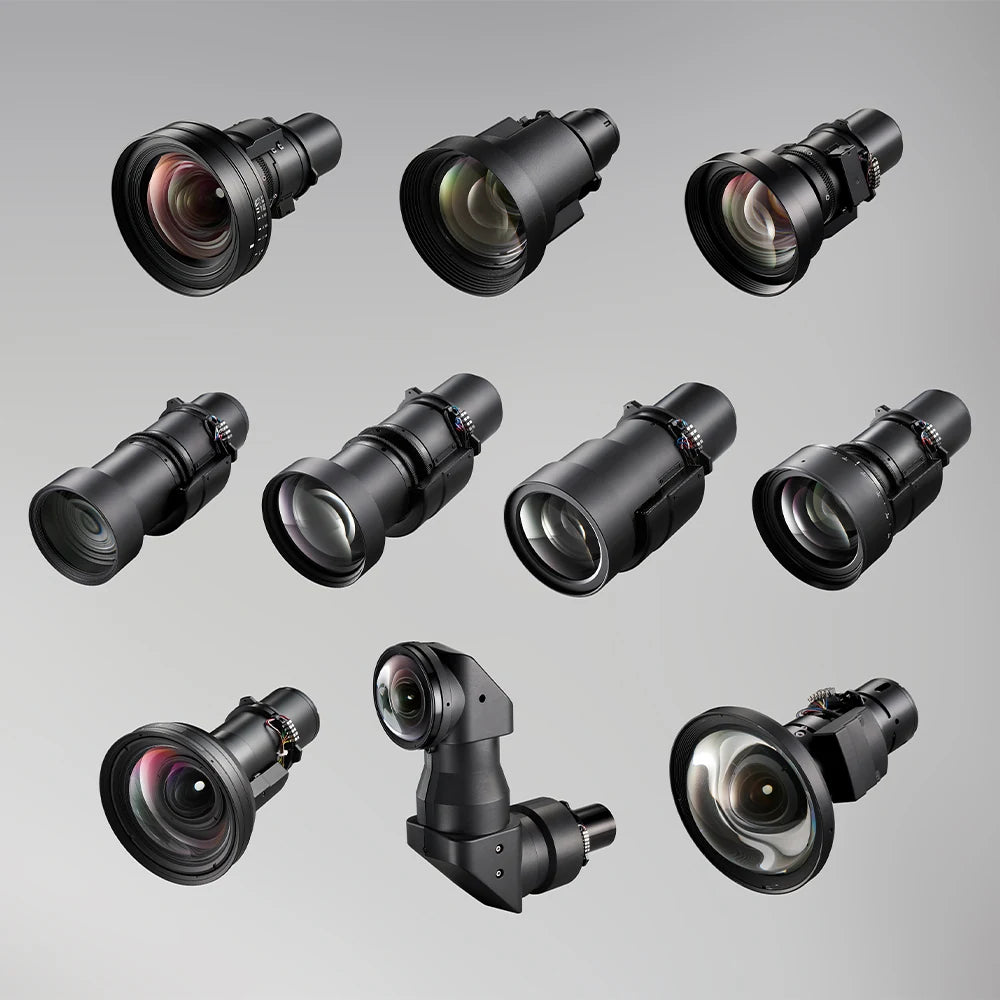

Choose the optics for your venue
Interchangeable lenses accommodate different throw distances and installation constraints. Lenses sold separately.
Connect to your AV system
Supports Art-Net, PJLink, Crestron, HDBaseT 3.0, AMX and Extron integration.
Designed with materials in mind
The chassis uses 50% post-consumer recycled material; recycled materials make up 98% of packaging by weight.
ZK1000 / Technical details
Specifications
Display/image
- Display technology
- TI 0.8” HEP DLP single chip
- Resolution
- 4K UHD+ WQUXGA (3840x2400)
- Brightness
- 10,000 ISO lumens
- ANSI brightness
- 8,500 lumens
- Contrast ratio
- 4,000,000:1
- Native aspect ratio
- 16:10
- Aspect ratio - compatible
- 4:3, 16:9, 16:10, 21:9, LBX
- Keystone correction - horizontal
- ± 20°
- Keystone correction - vertical
- ± 20°
- Horizontal scan rate
- 15.375 ~ 135 KHz
- Vertical scan rate
- 23.98 ~ 240 Hz (120 Hz for 3D feature projector)
- Uniformity
- 95%
- Screen size
- Mechanical: 50” ~ 1000”, Optical: 80” ~ 300”
Light source
- Light source type
- DuraCore laser
- Light source life
- 20,000 hours (bright mode) / 30,000 hours (eco mode)
Optical (optional compatible lenses)
- BX-CTA28 lens
- TR 0.34 ~ 0.37, Zoom 1.08x
- BX-CTA10 lens
- TR 0.5 ~ 0.65, Zoom 1.3x
- BX-CTA11 lens
- TR 0.78 ~ 0.9, Zoom 1.15x
- BX-CTA12 lens
- TR 0.9 ~ 1.3, Zoom 1.44x
- BX-CTA08 lens
- TR 1.25 ~ 2, Zoom 1.6x
- BX-CTA20 lens
- TR 1.44 ~ 1.8, Zoom 1.25x
- BX-CTA21 lens
- TR 1.8 ~ 2.4, Zoom 1.33x
- BX-CTA22 lens
- TR 2.4 ~ 4.8, Zoom 2.0x
- BX-CTA23 lens
- TR 4.8 ~8.6, Zoom 1.8x
- Zoom type (all lenses)
- Motorized
- Lens shift - 1/2 height (all lenses)
- Vertical: +/-120%, Horizontal: +/-50%
- Native offset (all lenses)
- Zero

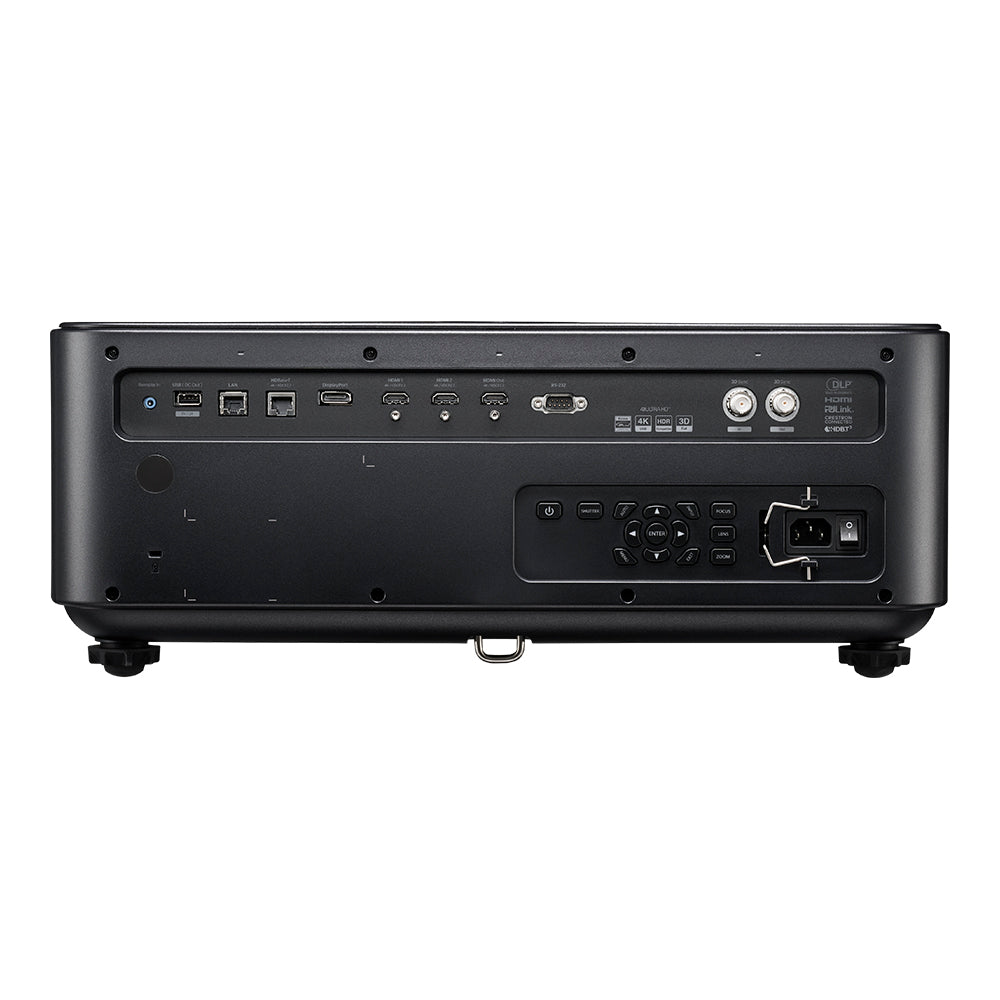

Connectivity
- Inputs
- 2 x HDMI (2.1, HDCP 1.4/2.3), 1 x DisplayPort In, 1 x HDBaseT v3.0, 1 x 3D Sync In (BNC)
- Outputs
- 1 x HDMI Out (2.1), 1 x 3D Sync Out (BNC) , 1 x USB-A Power (5V / 2A)
- Control
- 1 x RJ45, 1 x RS232, 1 x Wired In (3.5 mm phone jack), 3 x IR Receivers
General
- Noise level (typical / max)
- 36 dB / 40 dB
- Input lag
- 4.5 ms (1080p / 240 Hz, low latency on & warping off)
- 3D
- Full 3D
- IP rating (light engine)
- IP5X
- OSD / display languages
- 25 languages: Czecho / Danish / Dutch / English / Finnish / French / German / Greek / Hungarian / Indonesian / Italian / Japanese / Korean / Norwegian / Polish / Portuguese / Romanian / Russian / Simplified Chinese / Spanish / Swedish / Thai / Traditional Chinese / Turkish / Vietnamese
- 24/7 operation
- Yes
- 360° orientation
- Yes
- Speaker
- N/A
- Operating conditions
- Operating Temperature: 0 ~ 40°C; Tolerance +/- 2°C, Operating Altitude: 10,000 ft., for 0°C~30°C, Operating Humidity: 10~85%RH, non-condensing, Storage: 5~90% RH, non-condensing.
- Security
- Security bar, Kensington lock slot, password-protected interface
- In the box

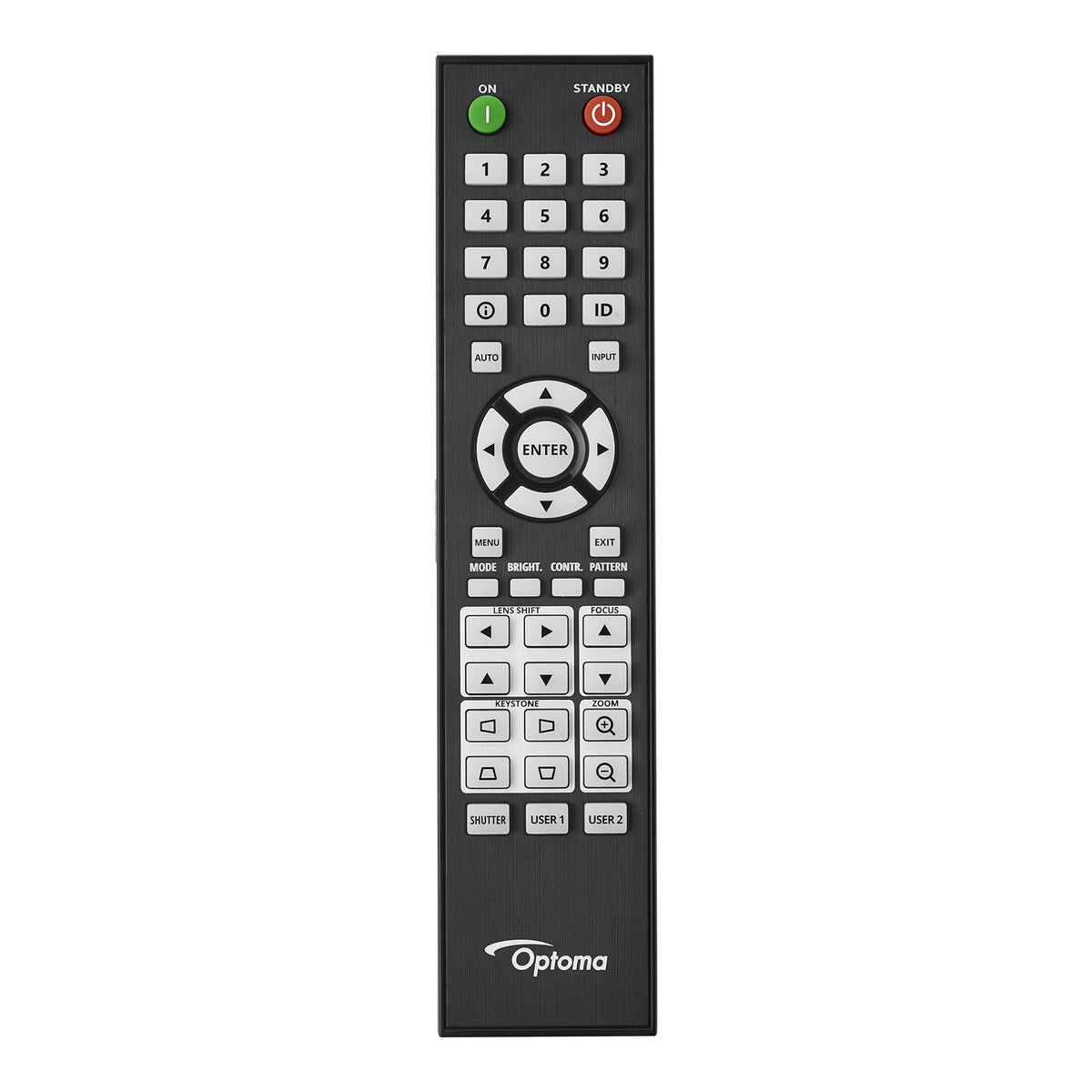

- QSG Backlit remote control AAA Batteries Power cable
Networking
- LAN - display
- No
- LAN - wireless networking
- No
- Networking
- OMS, Art-Net, PJlink, Telnet, Crestron, Extron, web control, AMX device discovery
Power
- Power supply
- AC 100 ~ 240 V, 50 ~ 60 Hz
- Power consumption @110V
- 590 W ±15% (Bright), 335 W ±15% (Eco)
- Power consumption @220V
- 580 W ±15% (Bright), 330 W ±15% (Eco)
- Dissipation BTU
- 2013 BTU/hr ±15% @110 VAC 1126 BTU/hr ±15% @220 VAC
Weight and dimensions
- Gross weight (w/o lens)
- 24 kg / 52.9 lbs
- Net weight (w/o lens)
- 16.8 kg / 37 lbs
- Dimensions (W x D x H)
- 535 mm x 396 mm x 211.5 mm / 21.06” x 15.59” x 8.33” - w/ feet 535 mm x 396 mm x 189 mm / 21.06” x 15.59” x 7.44” - w/o feet
- UPC
- 796435 44 891 2
Product maintenance
Care for Optoma ProScene ZK1000 10,000 lumen, 4K UHD+ WQUXGA Interchangeable Lens Laser Projector
Switch off, disconnect power and allow the projector to cool before cleaning. Follow the supplied model manual for lens care, ventilation openings and any filter servicing. Do not spray liquid onto the projector or open its housing; use qualified support for internal repairs.
Follow the manufacturer’s manual for model-specific cleaners, service intervals and replacement parts. To request the correct manual, contact hello@thebackyardlegacy.com
Shipping and returns
Shipping and returns for Optoma ProScene ZK1000 10,000 lumen, 4K UHD+ WQUXGA Interchangeable Lens Laser Projector
Delivery
The shipping service, destination coverage and charges for this item require confirmation before purchase.
Confirm the selected model, package dimensions, delivery service and included accessories. Check the package and equipment on arrival; mounting, wiring and setup are separate unless included in the written quote.
Only the delivery services and costs expressly included in this item’s terms or your written quote apply. Confirm any additional handling before ordering.
Lead time
Contact us for lead time
Confirm current stock and the schedule for your selected option and delivery address. Preparation or production, transit and any installation are separate stages; the listed estimate is not a guaranteed arrival date.
Returns
This item’s change-of-mind return eligibility, deadline, return freight and any fees require written confirmation before purchase. Damage and defect claims are separate.
Request authorization and the correct return address before sending this item back. Damage, defects and incorrect deliveries are handled separately from change-of-mind returns; contact us with your order number and photographs. Cancellation depends on the order’s actual dispatch, order commitment or production stage and the terms disclosed for this item.
For this product’s written terms, contact hello@thebackyardlegacy.com.
