Long-life laser illumination
Laser cooling and dust resistance support reliable operation.

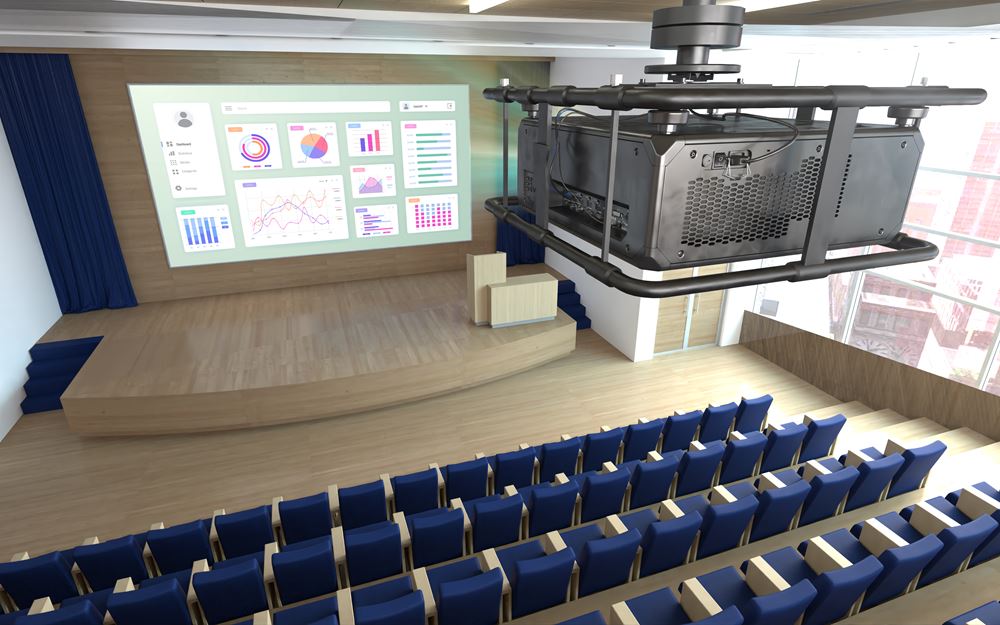

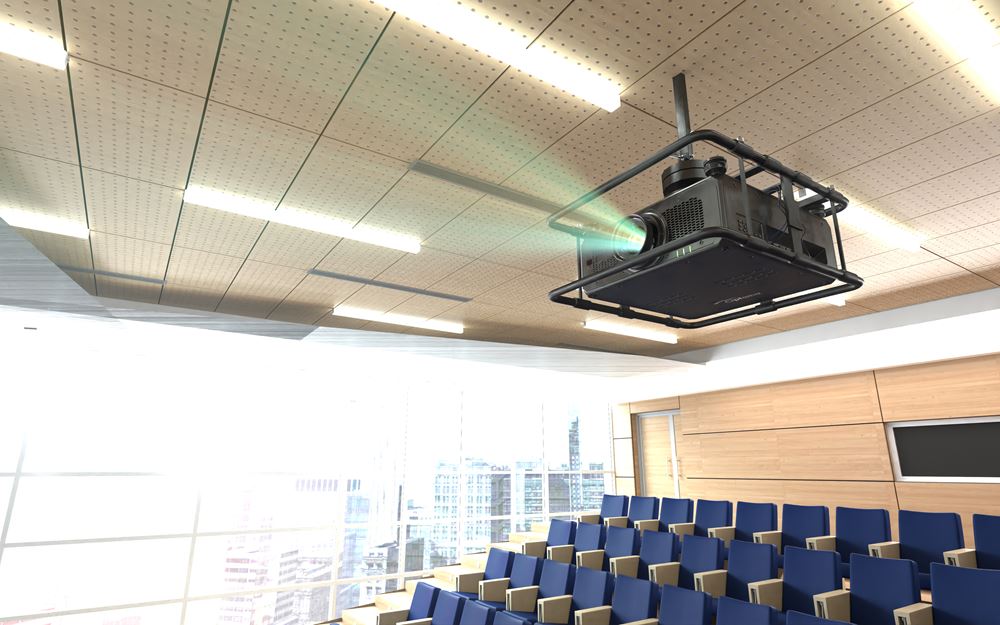

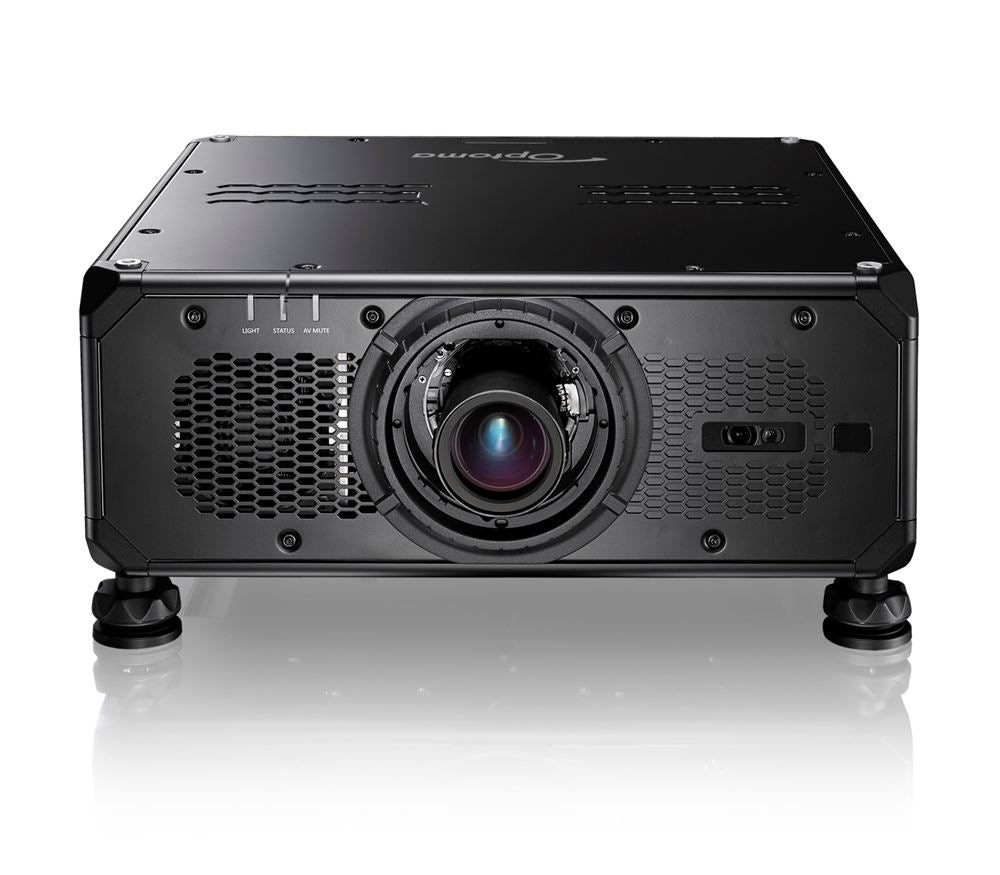

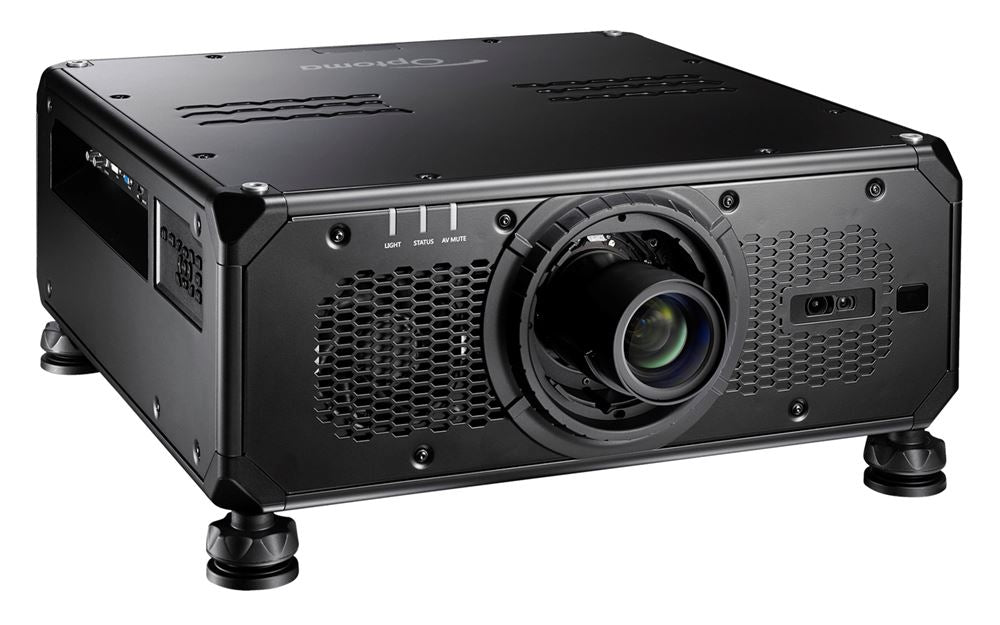

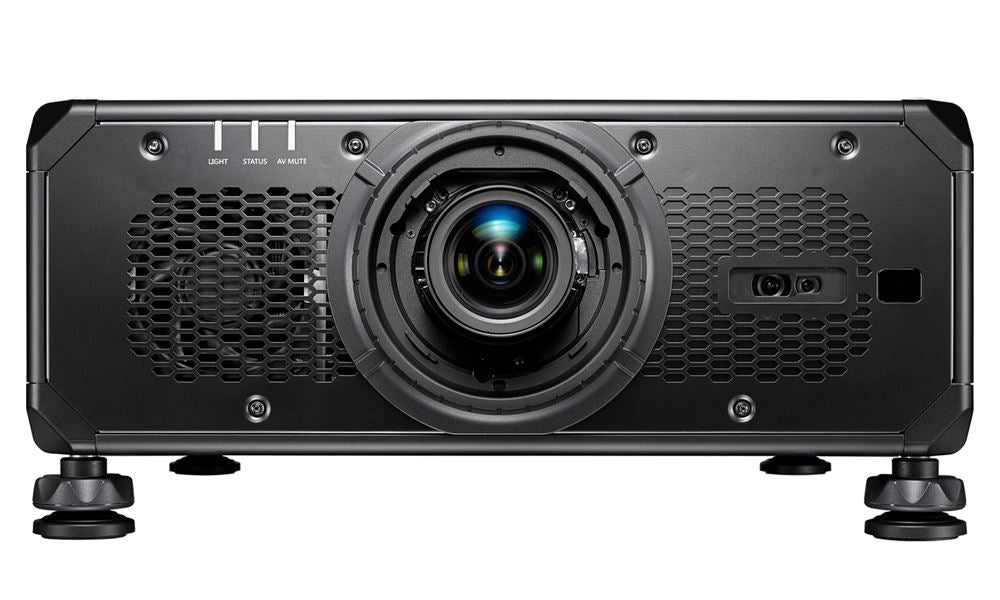

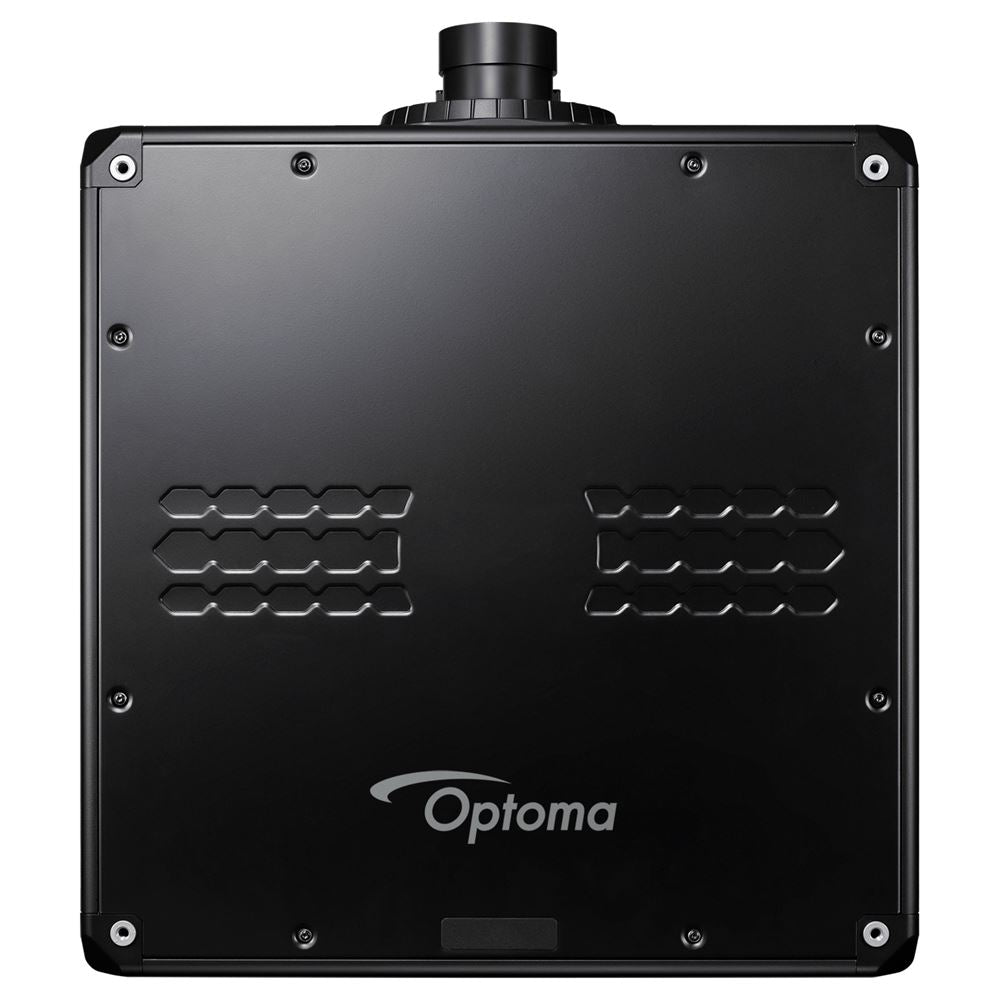

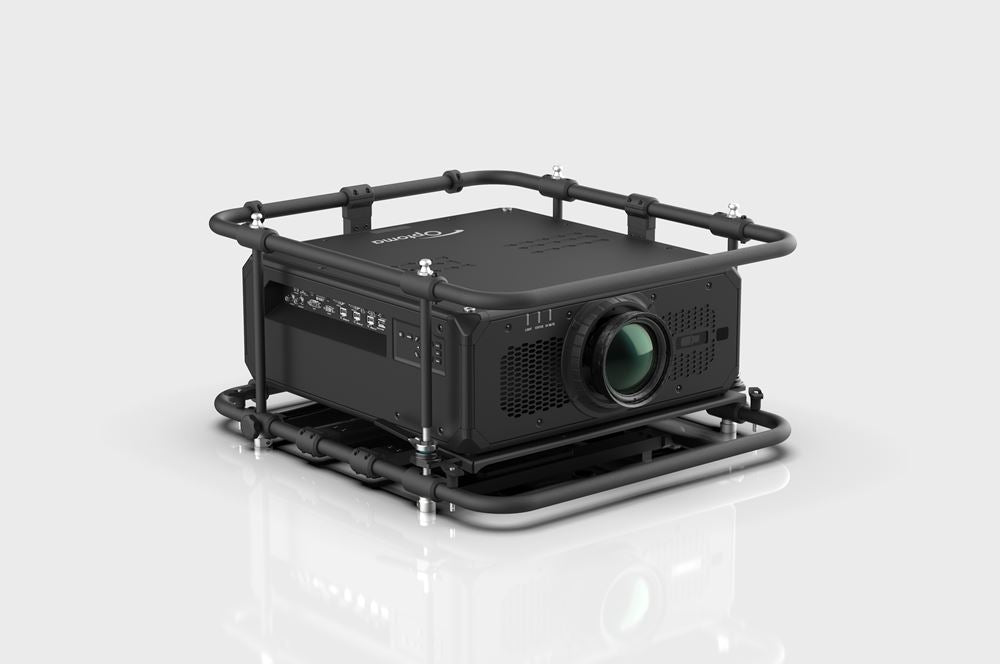

ProScene ZU1700
17,000-lumen WUXGA laser projector
Designed for ambitious professional installations, the ZU1700 combines high brightness with WUXGA resolution, flexible image adjustment and interchangeable optics.
- 17,000 lumens
- WUXGA 1920 × 1200 resolution
- Motorized lens shift and interchangeable lenses
- Compatible lens required; sold separately
A compatible lens is required and sold separately. Images may show an optional lens. Confirm installation, availability and delivery before ordering.
Built-in image shaping

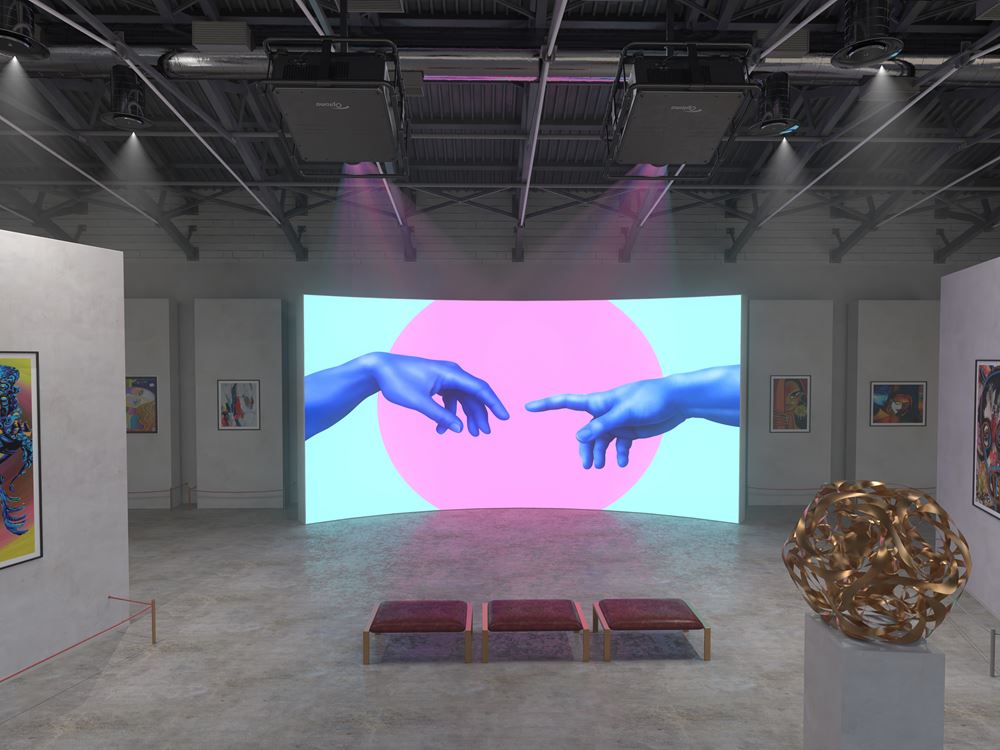

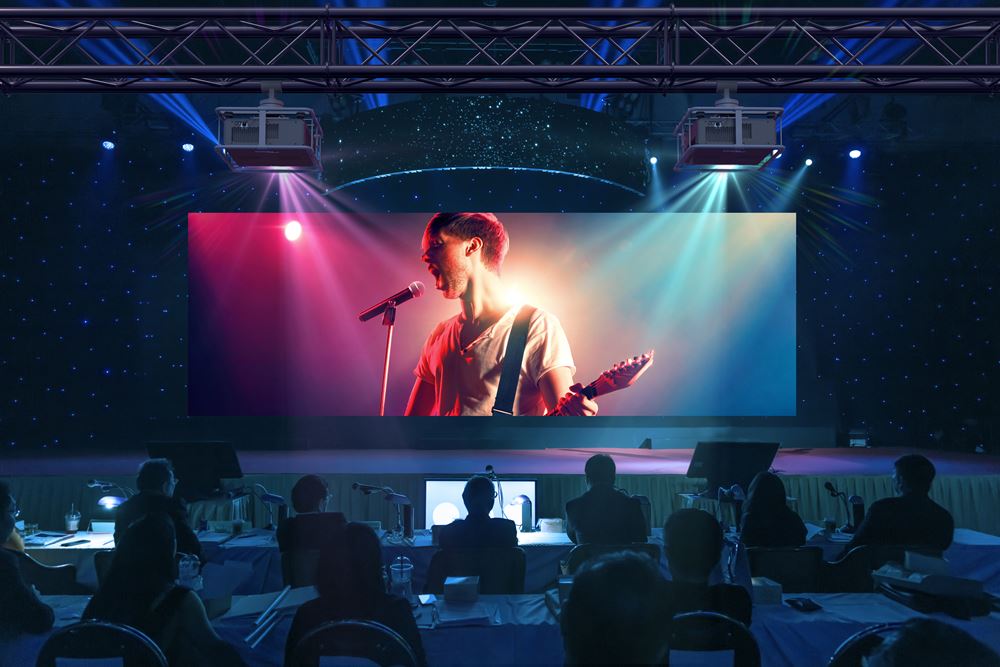

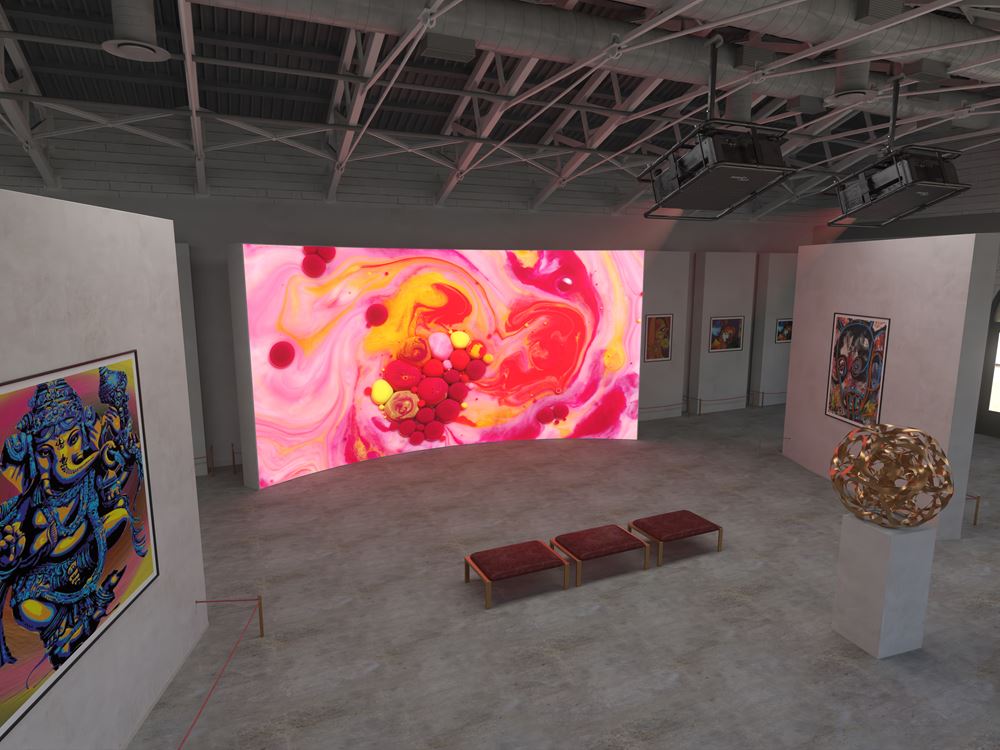

Built-in warping and edge blending support multi-projector installations. A compatible multi-output graphics card with overlap support is required.
Source continuity
Automatic switching provides input redundancy.
Support for passive 3D
Compatible passive 3D workflows are supported.
Color uniformity
The built-in camera supports automatic color uniformity adjustment for image sizes up to 300 inches. Keep the camera view clear during calibration.
Automatic focus adjustment
The built-in camera supports automatic focusing for image sizes up to 300 inches. Keep the camera view clear during calibration.
HDR signal compatibility
Display supported HDR content with enhanced tonal detail.
HDBaseT connectivity
Carry compatible video and control over network cabling.
A serviceable chassis
Modular metal panels simplify routine maintenance.
Color for large venues
Selectable display modes support sRGB color reproduction and presentation content.
Fine-tune the color
Adjust color settings to the installation.
Balance multiple projectors
Match brightness across connected projection systems.
Choose a power level
Select a consistent operating power setting.
Keep brightness consistent
Maintain a selected brightness level over time.
Blank the image instantly
Mute projection during breaks or transitions.
Deeper black performance
Enhanced black levels support dark-scene presentation.
Position the image precisely
Adjust image position with motorized lens shift.
Multiple sources on screen
Use supported picture-in-picture and side-by-side modes.
Flexible projection angles
Support for 360-degree installation orientations.
A vertical perspective
Project in portrait orientation.
Designed for varied environments
Review operating limits in the specifications.
Dust-resistant optics
An IP5X optical engine protects key imaging components.
3D content support
Display compatible 3D content.
Make adjustments remotely
Control and monitor the projector through RS232 and compatible AMX, Crestron RoomView and Extron IPLink systems.
PJLink control
Integrate with compatible projector-management systems.
Network command control
Manage supported functions through Telnet.
ZU1700 / Videos
See it in action
Product overviews and feature demonstrations.
Ultra Bright series overview
Series overview covering ZU1700, ZU1900 and ZU2200.
ZU1700 / Technical details
Specifications
Display/image
- Display technology
- DLP®
- Resolution
- WUXGA (1920x1200)
- Brightness
- 17,000 lumens
- ANSI brightness
- 14,500
- Contrast ratio
- 2,000,000:1
- Native aspect ratio
- 16:10
- Aspect ratio - compatible
- 16:9,16:10, 4:3
- Screen size
- Dependent on lens
Lamp info
- Light source type
- DuraCore Laser
- LASER life
- 30,000 hours
Optical
- Throw ratio
- Dependent on lens
- Projection distance
- Dependent on lens
- Lens options
- BX-CTA11: 0.65 ~ 0.75:1 BX-CAT12: 0.75 ~ 1.08:1 BX-CTA18: 0.84 ~ 1.02:1 BX-CTA19: 1.02 ~ 1.36:1 BX-CTA20: 1.2 ~ 1.5:1 BX-CTA21: 1.5 ~ 2.0:1 BX-CTA22: 2.0 ~ 4.0:1 BX-CTA23: 4.0 ~ 7.2:1 BX-CTA27: 7.2 ~ 10.8:1
- Lens shift
- Yes - see product downloads for more information
Connectivity

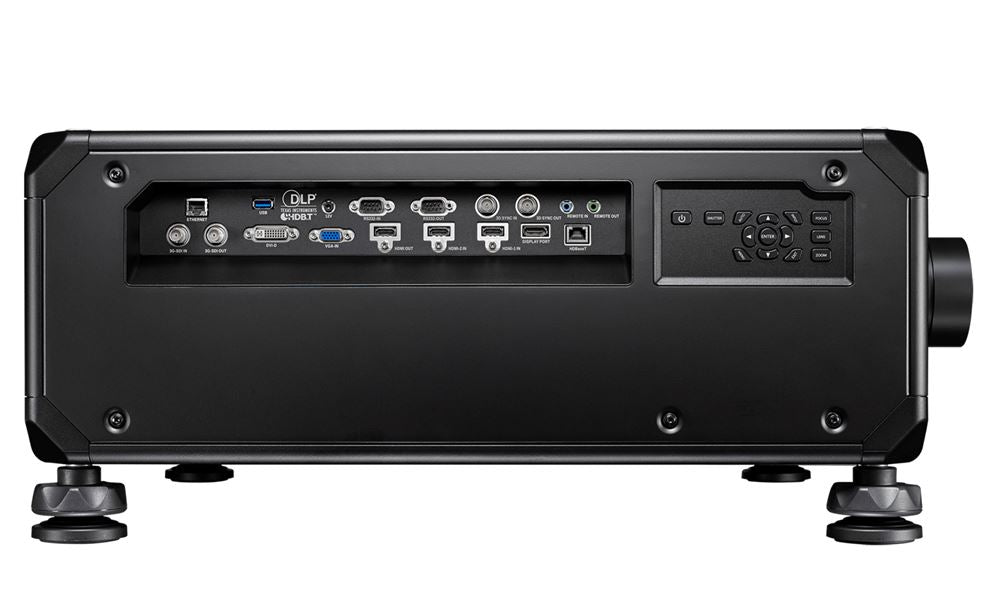

- Inputs
- 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI
- Outputs
- 1 x RS232, 1 x 3D sync, 1 x HDMI, 1 x 3G-SDI, 1 x 12V trigger
- Control
- 1 x RJ45, 1 x RS-232, 1 x USB-A service
General
- Noise level (min)
- 36dB
- Noise level (max)
- 38dB
- 3D
- Full 3D
- IP rating
- IP5X
- OSD / display languages
- 11 languages: Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Spanish
- 24/7 operation
- Yes
- 360° operation
- Yes
- Operating conditions
- Operating: 10~85%RH, non-condensing. Storage: 5~90%RH, non-condensing
- Remote control

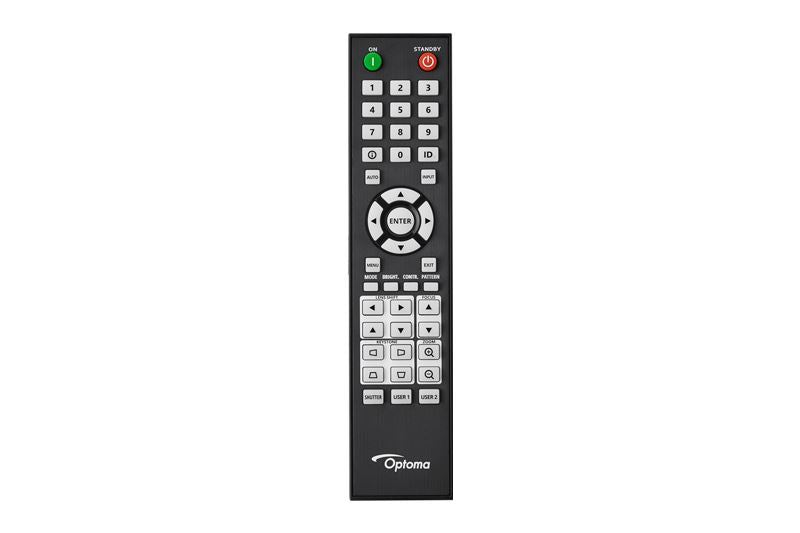

- Backlit ProAV remote
Networking
- LAN - display
- Yes
- LAN - wireless networking
- No
- LAN
- Yes
Power

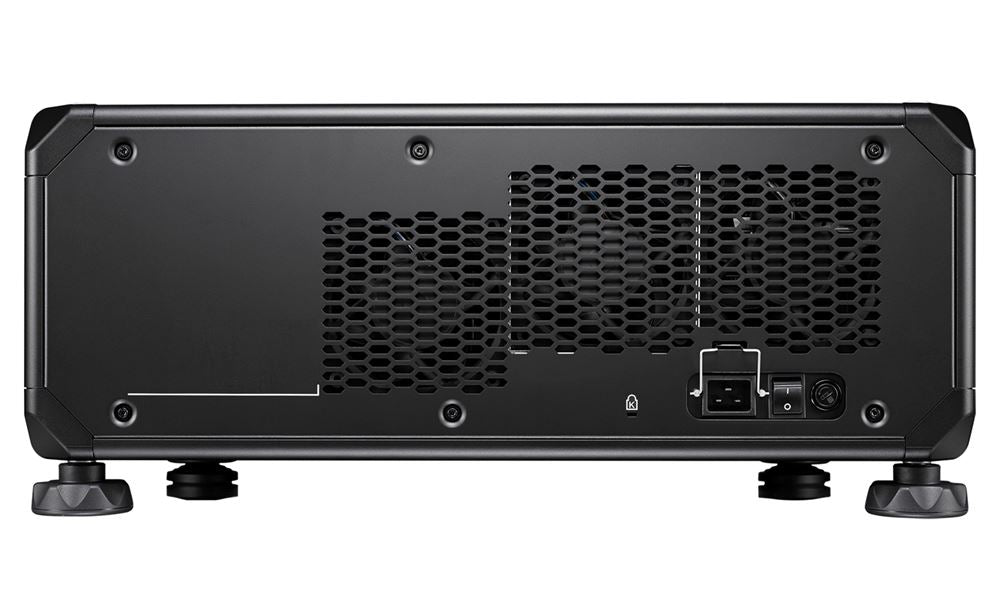

- Power supply
- AC 100–240 V @ 50/60 Hz
- Power consumption (standby)
- 0.5W
- Power consumption (min)
- 460W
- Power consumption (max)
- 1,000W
Weight and dimensions
- Dimensions (W x D x H)
- 25.59" x 26.85" x 11.84"
- Gross weight
- 137.79 lbs
- Net weight
- 110.23 lbs
- UPC
- 796435 44 553 9
Product maintenance
Care for Optoma ProScene ZU1700 Ultra-Bright Professional WUXGA laser projector
Switch off, disconnect power and allow the projector to cool before cleaning. Follow the supplied model manual for lens care, ventilation openings and any filter servicing. Do not spray liquid onto the projector or open its housing; use qualified support for internal repairs.
