Support for passive 3D
Compatible passive 3D workflows are supported.

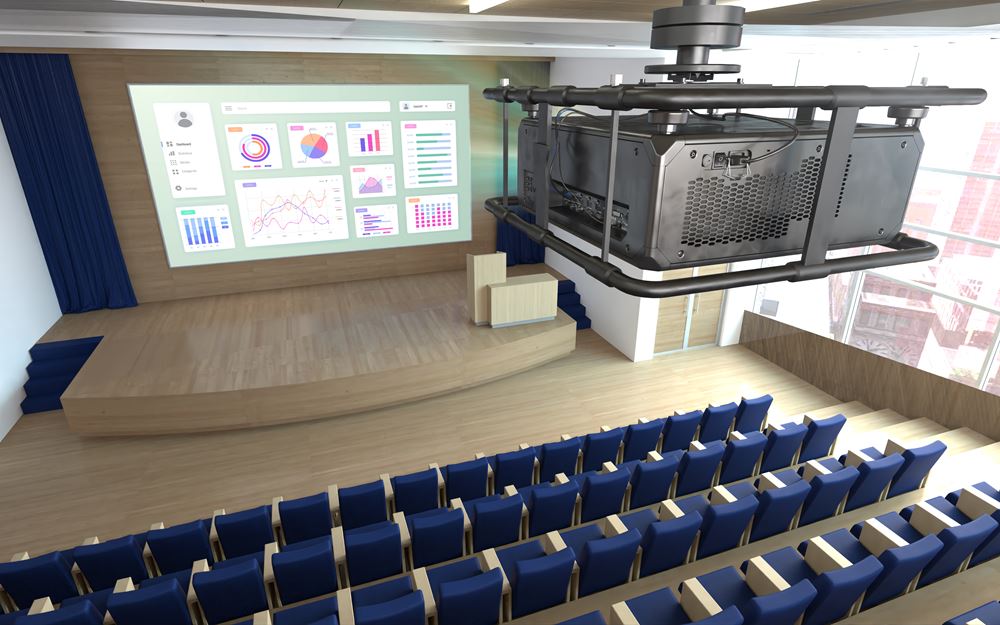

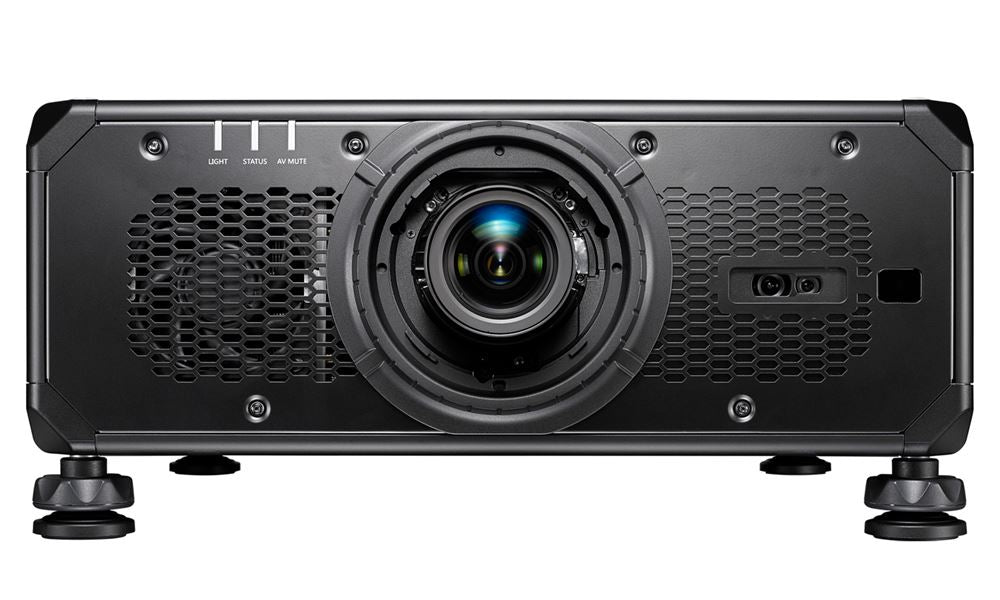

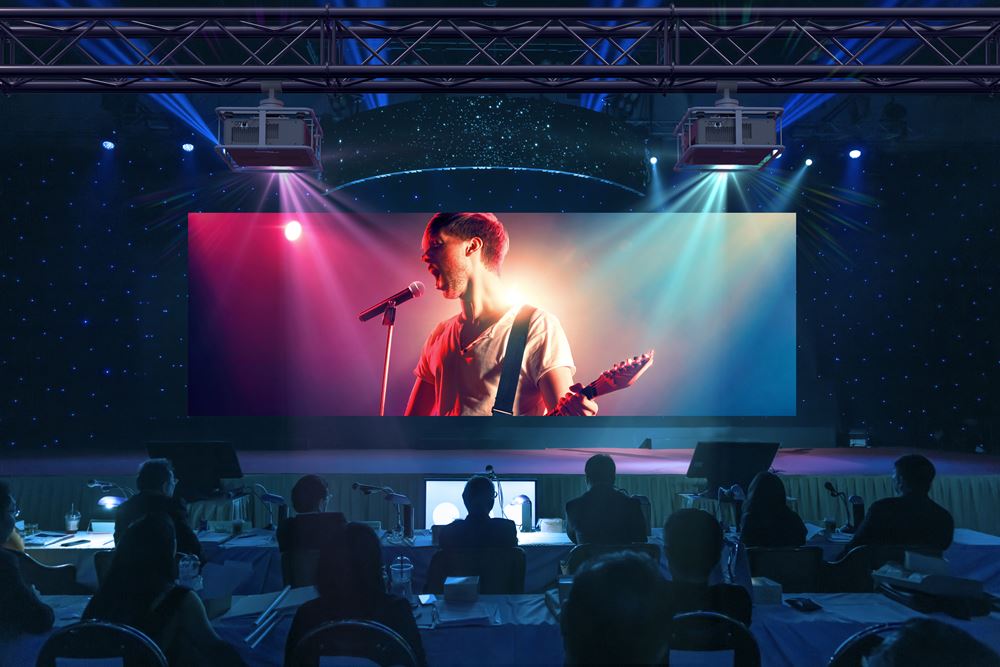

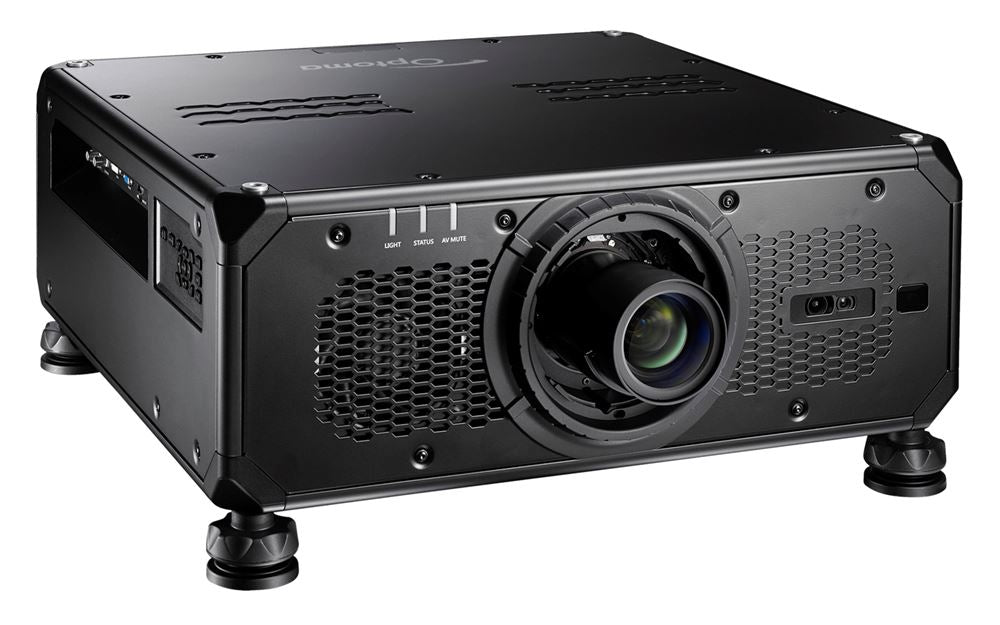

ProScene ZU2200
22,000-lumen WUXGA laser projector
Designed for ambitious professional installations, the ZU2200 combines high brightness with WUXGA resolution, flexible image adjustment and interchangeable optics.
- 22,000 lumens
- WUXGA 1920 × 1200 resolution
- Motorized lens shift and interchangeable lenses
- Compatible lens required; sold separately
A compatible lens is required and sold separately. Images may show an optional lens. Confirm installation, availability and delivery before ordering.

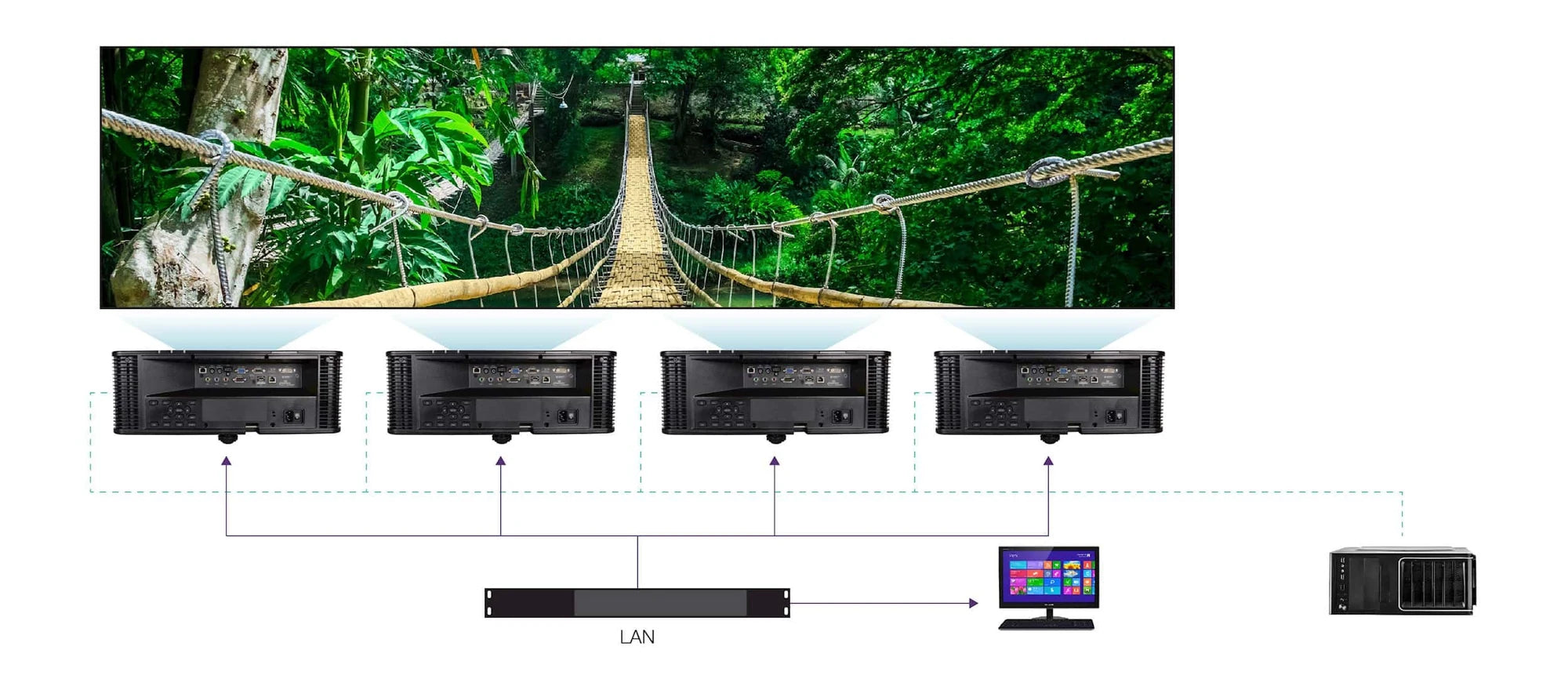

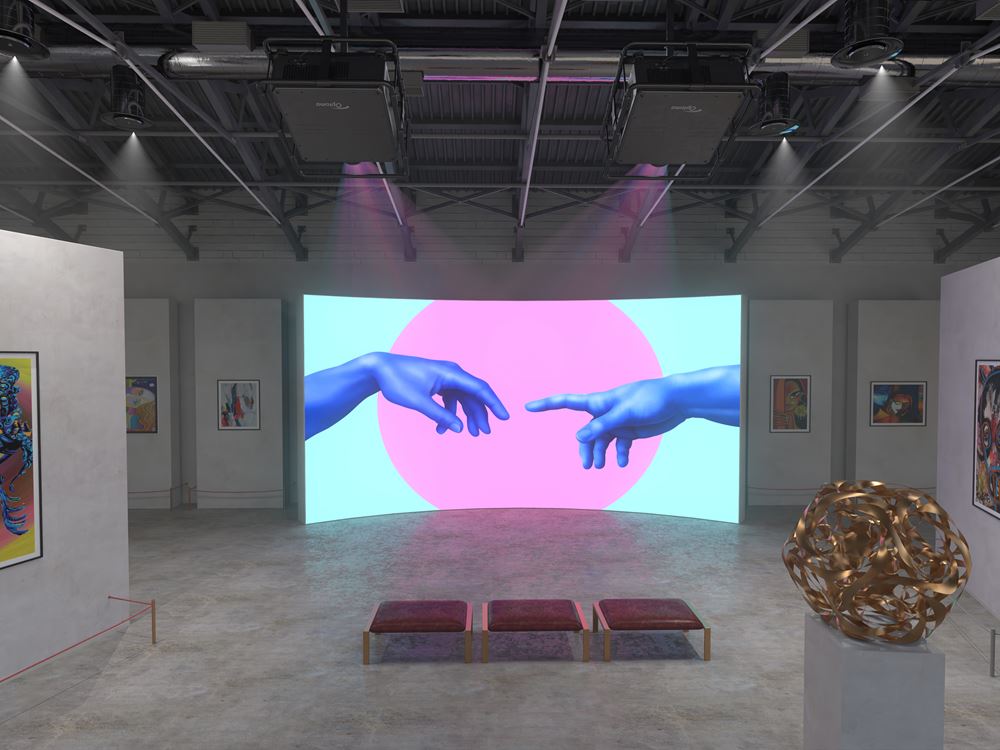

Built-in image shaping

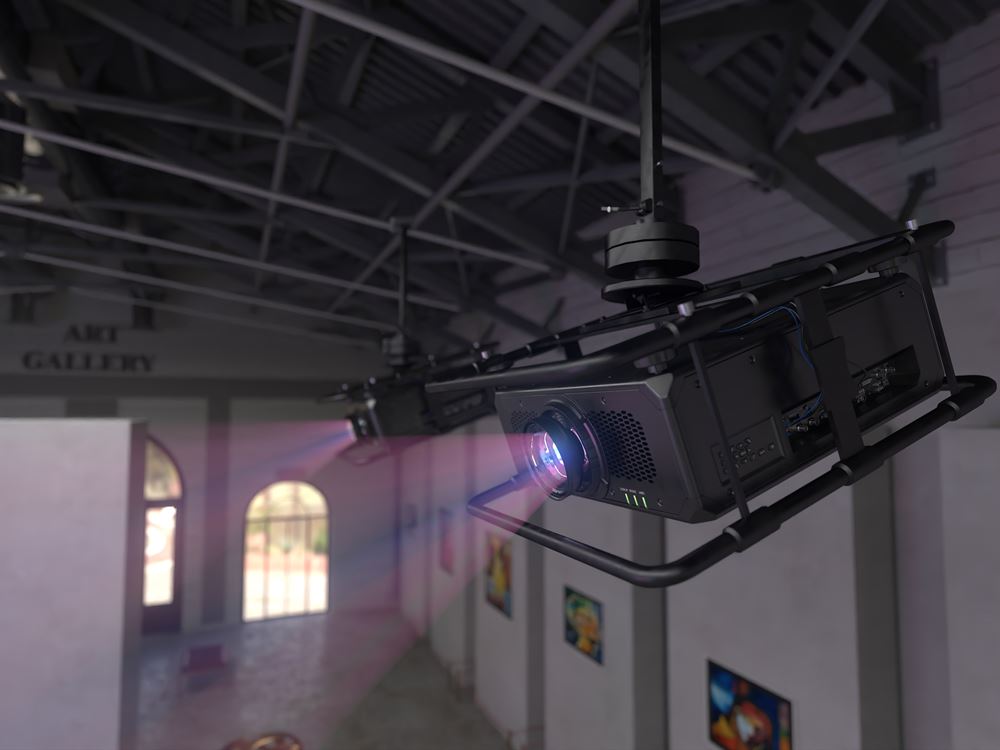

Built-in warping and edge blending support multi-projector installations. A compatible multi-output graphics card with overlap support is required.

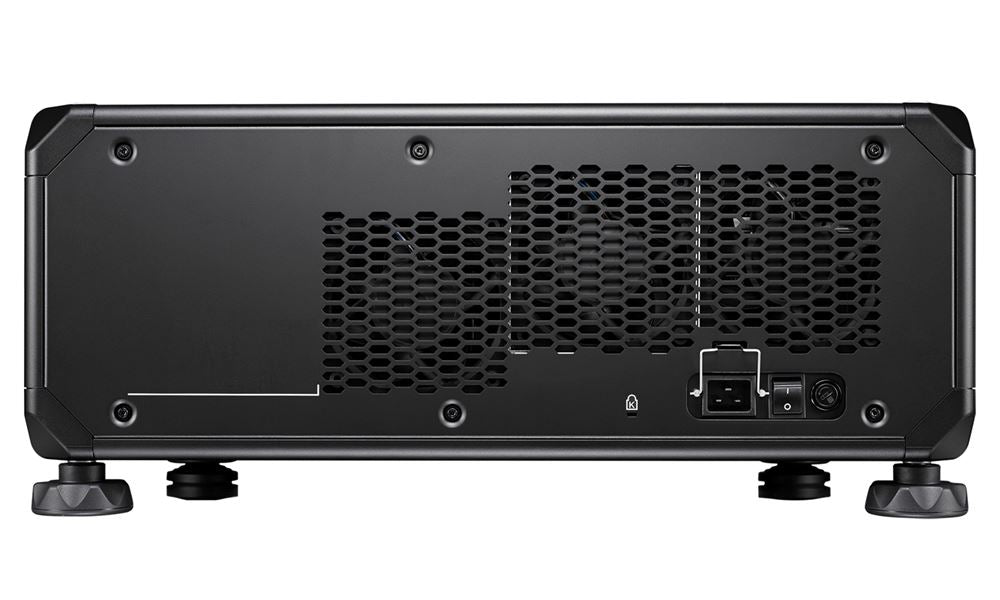

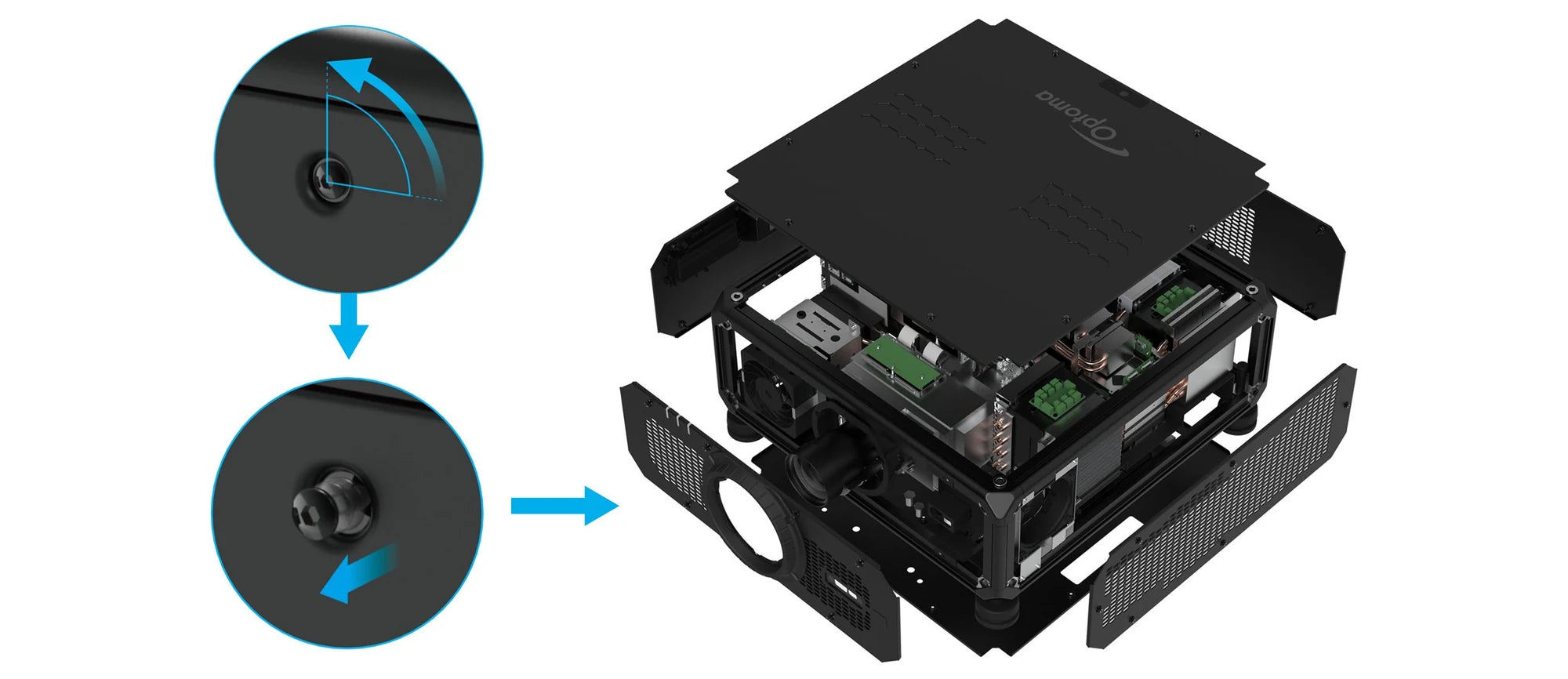

A serviceable chassis
Modular metal panels simplify routine maintenance.

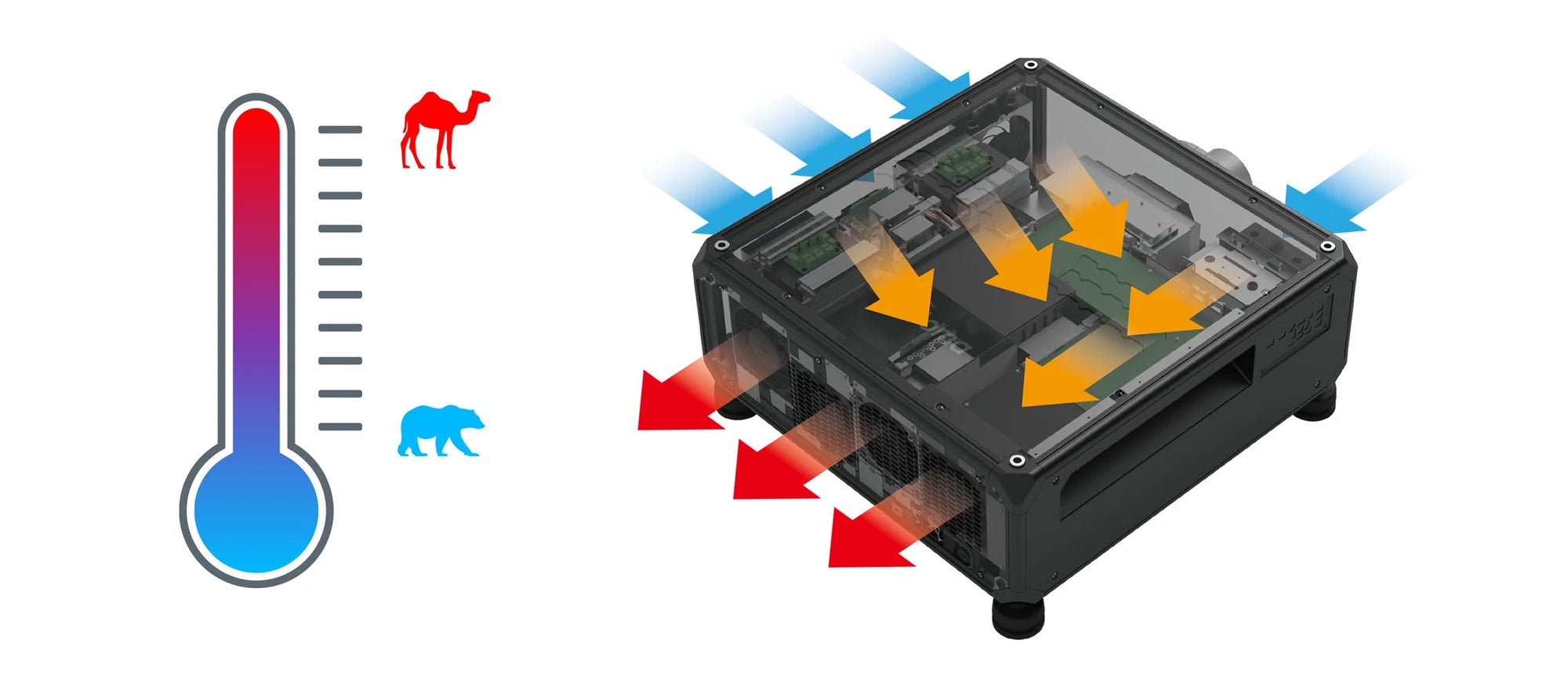

Designed for varied environments
Review operating limits in the specifications.
Color uniformity
The built-in camera supports automatic color uniformity adjustment for image sizes up to 300 inches. Keep the camera view clear during calibration.
Automatic focus adjustment
The built-in camera supports automatic focusing for image sizes up to 300 inches. Keep the camera view clear during calibration.
Long-life laser illumination
Laser cooling and dust resistance support reliable operation.
HDR signal compatibility
Display supported HDR content with enhanced tonal detail.
Deeper black performance
Enhanced black levels support dark-scene presentation.
HDBaseT connectivity
Carry compatible video and control over network cabling.
Color for large venues
MultiColor laser illumination supports accurate color reproduction.
Fine-tune the color
Adjust color settings to the installation.
Choose a power level
Select a consistent operating power setting.
Keep brightness consistent
Maintain a selected brightness level over time.
Blank the image instantly
Mute projection during breaks or transitions.
Position the image precisely
Adjust image position with motorized lens shift.
Multiple sources on screen
Use supported picture-in-picture and side-by-side modes.
Flexible projection angles

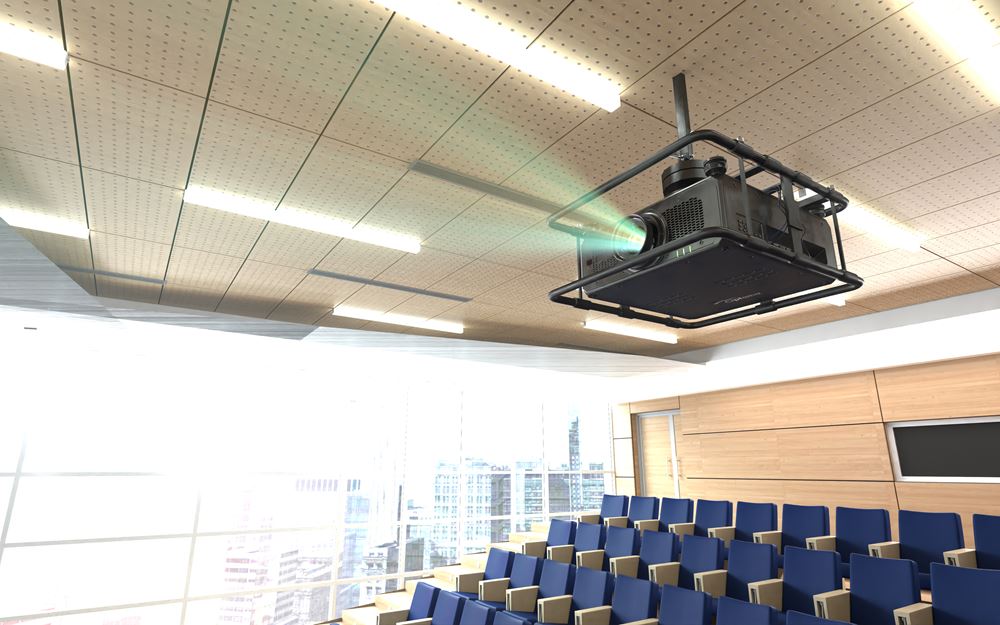

Support for 360-degree installation orientations.
A vertical perspective
Project in portrait orientation.
Dust-resistant optics
An IP5X optical engine protects key imaging components.
Network command control
Manage supported functions through Telnet.
Make adjustments remotely
Control and monitor the projector through RS232 and compatible AMX, Crestron RoomView and Extron IPLink systems.
PJLink control
Integrate with compatible projector-management systems.
3D content support
Display compatible 3D content.
MultiColor laser imaging
MultiColor illumination supports large-venue color performance.
ZU2200 / Videos
See it in action
Product overviews and feature demonstrations.
Ultra Bright series overview
Series overview covering ZU1700, ZU1900 and ZU2200.
ZU2200 / Technical details
Specifications
Display/image
- Display technology
- DLP®
- Resolution
- WUXGA (1920x1200)
- Brightness
- 22,000 lumens
- ANSI brightness
- 18,500
- Contrast ratio
- 2,000,000:1
- Native aspect ratio
- 16:10
- Aspect ratio - compatible
- 16:9, 16:10, 4:3
- Screen size
- Dependent on lens
Lamp info
- Light source type
- DuraCore MultiColor Laser
- LASER life
- 30,000 hours
Optical
- Throw ratio
- Dependent on lens
- Projection distance
- Dependent on lens
- Lens options
- BX-CTA11: 0.65 ~ 0.75:1 BX-CTA12: 0.75 ~ 1.08:1 BX-CTA18: 0.84 ~ 1.02:1 BX-CTA19: 1.02 ~ 1.36:1 BX-CTA20: 1.2 ~ 1.5:1 BX-CTA21: 1.5 ~ 2.0:1 BX-CTA22: 2.0 ~ 4.0:1 BX-CTA23: 4.0 ~ 7.2:1 BX-CTA27: 7.2 ~ 10.8:1

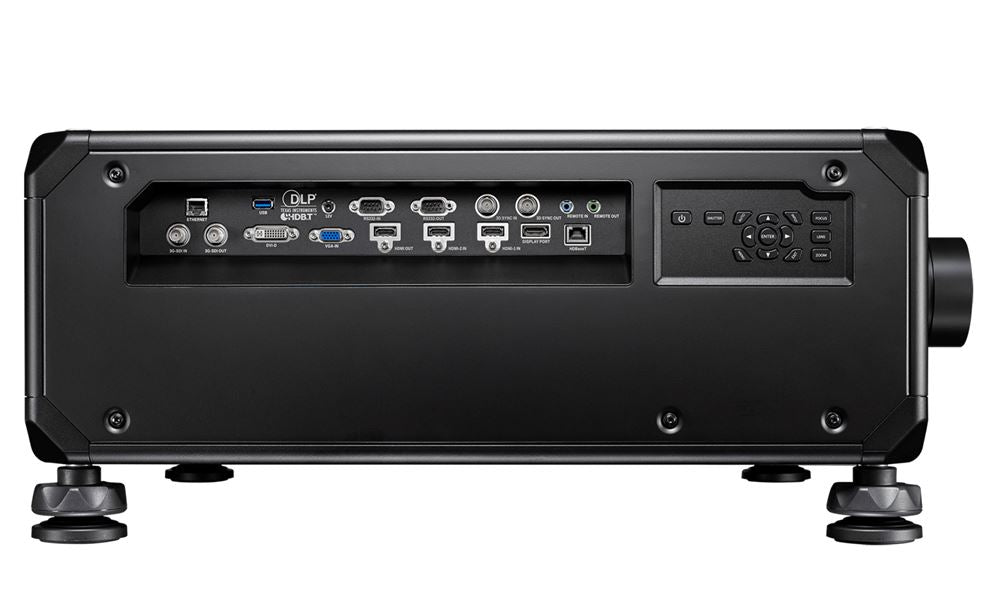

Connectivity
- Inputs
- 1 x 3D sync, 1 x Wired remote, 1 x HDBaseT, 1 x DisplayPort, 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x 3G-SDI, 1 x Wired remote
- Outputs
- 1 x 3D sync, 1 x HDMI, 1 x 3G-SDI, 1 x 12V trigger
- Control
- 1 x RJ45, 1 x RS232, 1 x USB-A service
General
- Noise level (min)
- 38dB
- Noise level (max)
- 40dB
- 3D
- Full 3D
- IP rating
- IP5X
- OSD / display languages
- 11 languages: Dutch, English, French, German, Hungarian, Italian, Japanese, Norwegian, Polish, Portuguese, Spanish
- 24/7 operation
- Yes
- 360° operation
- Yes
- Operating conditions
- Operating: 10~85%RH, non-condensing. Storage: 5~90%RH, non-condensing

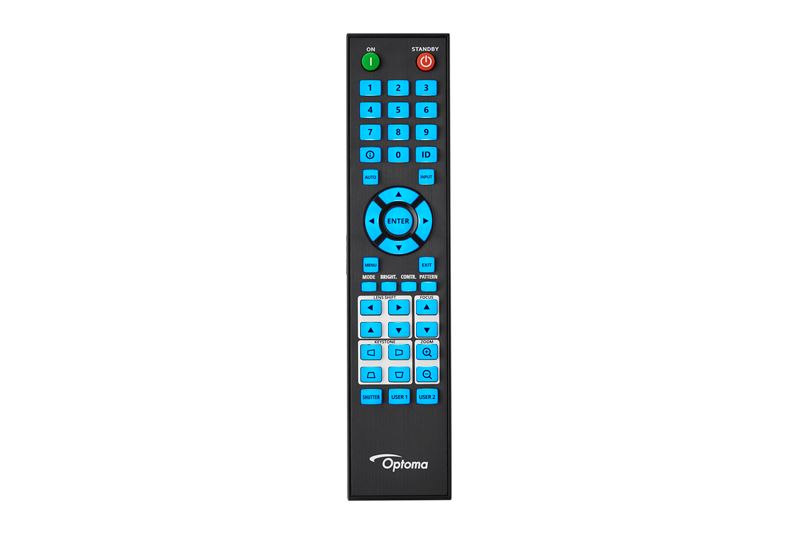

- Remote control
- Backlit ProAV remote
Networking
- LAN - display
- Yes
- LAN - wireless networking
- No
- LAN
- Yes
Power
- Power supply
- AC 100–240 V @ 50/60 Hz
- Power consumption (standby)
- 0.5W
- Power consumption (min)
- 590W
- Power consumption (max)
- 1,200W
Weight and dimensions
- Dimensions (W x D x H)
- 25.59" x 26.85" x 11.84"
- Gross weight
- 146.61 lbs
- Net weight
- 119.05 lbs
- UPC
- 796435 44 554 6
Product maintenance
Care for Optoma ProScene ZU2200 Ultra-Bright Professional WUXGA laser projector
Switch off, disconnect power and allow the projector to cool before cleaning. Follow the supplied model manual for lens care, ventilation openings and any filter servicing. Do not spray liquid onto the projector or open its housing; use qualified support for internal repairs.
Follow the manufacturer’s manual for model-specific cleaners, service intervals and replacement parts. To request the correct manual, contact hello@thebackyardlegacy.com
Shipping and returns
Shipping and returns for Optoma ProScene ZU2200 Ultra-Bright Professional WUXGA laser projector
Delivery
The shipping service, destination coverage and charges for this item require confirmation before purchase.
Confirm the selected model, package dimensions, delivery service and included accessories. Check the package and equipment on arrival; mounting, wiring and setup are separate unless included in the written quote.
Only the delivery services and costs expressly included in this item’s terms or your written quote apply. Confirm any additional handling before ordering.
Lead time
Contact us for lead time
Confirm current stock and the schedule for your selected option and delivery address. Preparation or production, transit and any installation are separate stages; the listed estimate is not a guaranteed arrival date.
Returns
This item’s change-of-mind return eligibility, deadline, return freight and any fees require written confirmation before purchase. Damage and defect claims are separate.
Request authorization and the correct return address before sending this item back. Damage, defects and incorrect deliveries are handled separately from change-of-mind returns; contact us with your order number and photographs. Cancellation depends on the order’s actual dispatch, order commitment or production stage and the terms disclosed for this item.
For this product’s written terms, contact hello@thebackyardlegacy.com.
ZU2200 / Product resources
Downloads
Manuals, product information and supporting documents.
